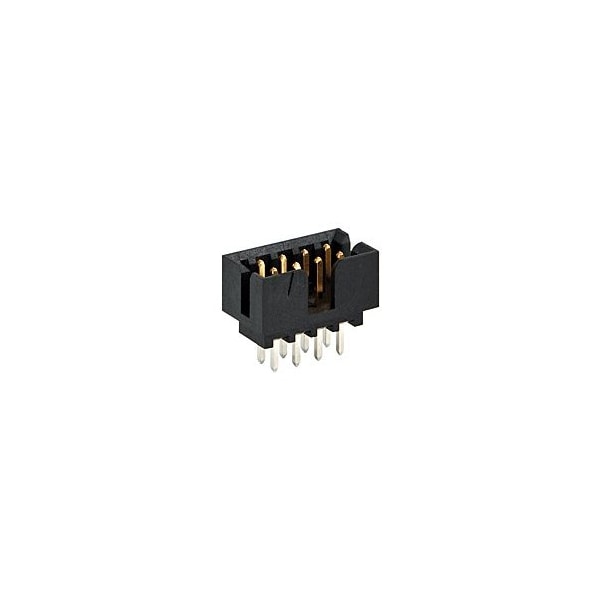

Molex MGrid Hdr Shrd Vt/Stdf .76AuLF 8Ckt 87831-0821 - main

MGrid Hdr Shrd Vt/Stdf .76AuLF 8Ckt

  • Mfr # 87831-0821

  • Zoro # G4033483

product price:  $1.69
/ea
Sold in multiples of 4000 for $6,760.00

Key Features

PCB Thickness - Recommended
1.60mm
Color - Resin
Black
CSA
LR19980
Voltage - Maximum
125V
Circuits (maximum)
8
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
87831-0821
Zoro #
G4033483
UPC #
-
Country of Origin
Malaysia

Dimensions

PCB Thickness - Recommended
1.60mm
PC Tail Length
2.50mm

Details

Color - Resin
Black
CSA
LR19980
Voltage - Maximum
125V
Circuits (maximum)
8
Surface Mount Compatible (SMC)
Yes
Current - Maximum per Contact
2.0A
Circuits (Loaded)
8
Material - Plating Termination
Tin
Material - Resin
Nylon
Lock to Mating Part
Yes
Duration at Max. Process Temperature (seconds)
10
Pitch - Mating Interface
2.00mm
Durability (mating cycles max)
100
Plating min - Mating
0.762µm
Temperature Range - Operating
-55° to +105°C
Pitch - Termination Interface
2.00mm
Flammability
94V-0
Shrouded
Yes
Max. Cycles at Max. Process Temperature
1
Material - Metal
Phosphor Bronze
Number of Rows
2
Material - Plating Mating
Gold
Termination Interface: Style
Through Hole
Plating min - Termination
1.905µm
Process Temperature max. C
260
UL
E29179
Orientation
Vertical
