  11. Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

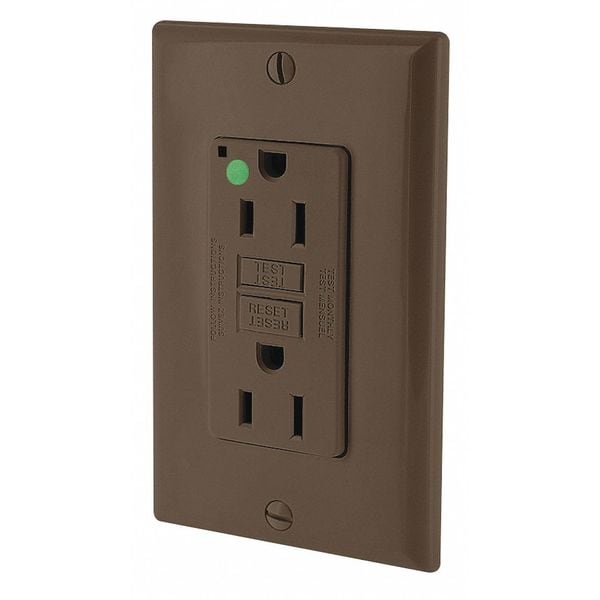

Leviton Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK GFNT1-HG - main

Recept, Brown, 15 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNT1-HG

  • Zoro # G704392897

product price: $31.15
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT1-HG
Zoro #
G704392897
UPC #
07847772499
Country of Origin
China

Dimensions

Face Plate Width
1.7 in
Mount Hole Center-to-Center Height
3.8 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Face Plate Height
2.8 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Brown
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Item - Plugs and Receptacles
GFCI Receptacle
Voltage - Plugs and Receptacles
125V
Power Indicator
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Color
Brown
HP
1 hp
Voltage
125 VAC
Application Environment
Hospital Grade
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
Color - Plugs and Receptacles
Brown
Self-Testing
Yes
Wiring Method
Back, Side
Surge Suppression
Yes
Outlet Type - Plugs and Receptacles
Duplex
Amps - Plugs and Receptacles
15 A
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Grade
Hospital Grade Fed. Spec.
Hub Type
Feed Through
Features
Built-In Night Light
Includes Mounting Hardware
Yes
Receptacle Type
Decorator Duplex
Maximum Operating Temperature
150.8 Degrees F
UL 94 Flammability Rating
V-0
Includes
Strap Material
Contact Material
Brass
Mount Type
Flush
Wire Connection Type
Screw Terminals
Self Testing
Yes
Visual Indicator Lights
Power Connected
Voltage Rating
125V AC
Horsepower Rating
1 hp
Surge Protection
Yes
Minimum Operating Temperature
-31 Degrees F
Terminal Clamp
Brass
Wire
3
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Grounding Screw
Plated Steel
Feature
Wallplate Included|Power Indication
Flammability
Rated V-0 per UL 94
Body Material
Polycarbonate
Terminal Accom.
14-10 AWG solid or stranded
Certification/Listing
UL, CSA, NOM-ANCE
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
Plated Steel
Ground Clips
Brass
Face Material
PBT
Termination
Back or Side Wire
Short Circuit Current Rating
10kA
NEMA
WD-1 & WD-6
Function
GFCI
Device Type
Duplex Receptacle Outlet
Amperage
15 A & 20 A Feed-Through
At Rated Voltage
1 HP
Line Contacts
Brass
Operating Temperature
-35C to +66C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
ANSI
C-73
Strap Material
Galvanized Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
