  11. Recept, Brown, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

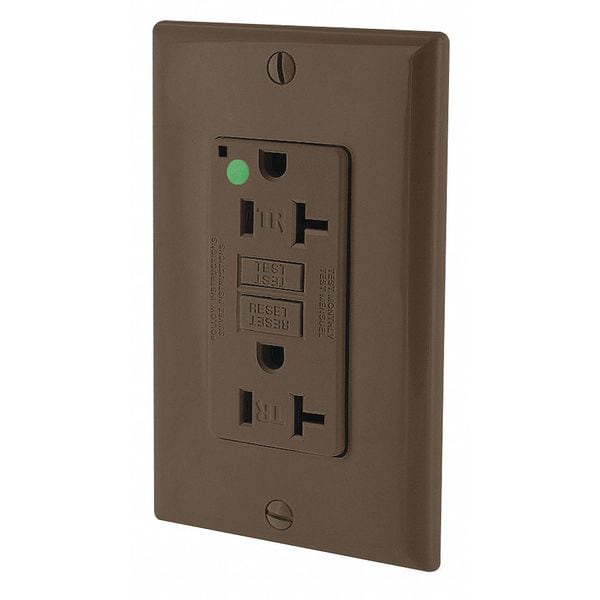

Leviton Recept, Brown, 20 A, GFCI, 2P3W, Bk;Sd, 1PK GFTR2-HG - main

Recept, Brown, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFTR2-HG

  • Zoro # G704392798

product price: $37.19
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFTR2-HG
Zoro #
G704392798
UPC #
07847772374
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Brown
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA Certified, Federal Specification, NOM-ANCE, RoHS Compliant, UL Listed
Color - Plugs and Receptacles
Brown
Color
Brown
Tamper Resistant
Yes
Surge Suppression
Yes
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Wiring Method - Plugs and Receptacles
Back and Side
Weather Resistant - Plugs and Receptacles
No
Self-Testing
Yes
Application Environment
Hospital Grade
Power Indicator
Yes
Voltage - Plugs and Receptacles
125V
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Duplex
Voltage
125 VAC
Amps - Plugs and Receptacles
20 A
HP
1 hp
Item - Plugs and Receptacles
GFCI Receptacle
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Includes Mounting Hardware
Yes
Resistance Properties
Tamper Resistant
Visual Indicator Lights
Power Connected
Contact Material
Brass
Surge Protection
Yes
Horsepower Rating
1 hp
Includes
Wallplate
Mount Type
Flush
Hub Type
Feed Through
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-31 Degrees F
Voltage Rating
125V AC
Receptacle Type
Decorator Duplex
Self Testing
Yes
Maximum Operating Temperature
150.8 Degrees F
Grade
Hospital Grade Fed. Spec.
Wire Connection Type
Screw Terminals
Terminal Screws
Plated Steel
Operating Temperature
-35C to +66C
Certification/Listing
UL, CSA, NOM-ANCE
Function
GFCI
Terminal Clamp
Brass
NEMA
WD-1 & WD-6
Pole
2
ANSI
C-73
Feature
Wallplate Included|Tamper-Resistant|Power Indication
Flammability
Rated V-0 per UL 94
Shutter Mechanism
Delrin® Acetal
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Termination
Back or Side Wire
Strap Material
Galvanized Steel
Body Material
Polycarbonate
Line Contacts
Brass
Wire
3
Amperage
20 A
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Screw Terminal Torque
14-18 in-lbs
Face Material
PBT
At Rated Voltage
1 HP
Device Type
Duplex Receptacle Outlet
Grounding Screw
Plated Steel
Terminal Accom.
14-10 AWG solid or stranded
Ground Clips
Brass
Short Circuit Current Rating
10kA
Trip Level
Class A, 5mA plus or minus 1mA

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
