  11. Recept, Gray, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

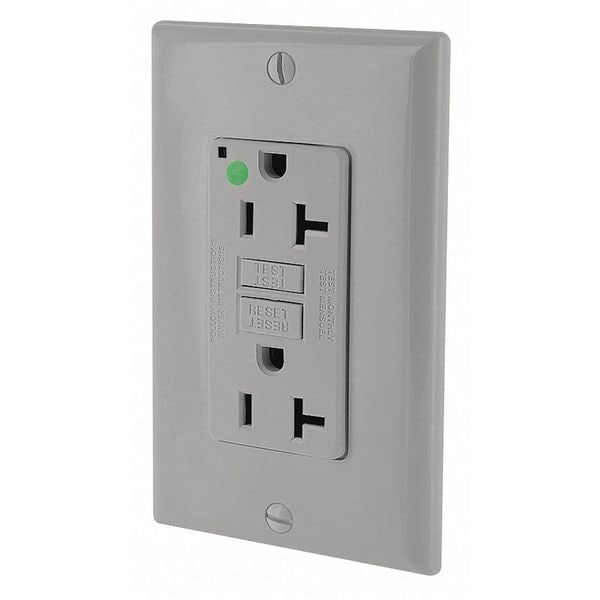

Leviton Recept, Gray, 20 A, GFCI, 2P3W, Bk;Sd, 1PK GFNT2-HGG - main

Recept, Gray, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNT2-HGG

  • Zoro # G304392860

product price: $33.65
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-HGG
Zoro #
G304392860
UPC #
07847772510
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Gray
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Voltage
125 VAC
Item - Plugs and Receptacles
GFCI Receptacle
Self-Testing
Yes
Wiring Method
Back, Side
Power Indicator
Yes
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Color - Plugs and Receptacles
Gray
Application Environment
Hospital Grade
Surge Suppression
Yes
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Voltage - Plugs and Receptacles
125V
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Amps - Plugs and Receptacles
20 A
Color
Gray
Visual Indicator Lights
Power Connected
Wire Connection Type
Screw Terminals
Mount Type
Flush
Voltage Rating
125V AC
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-31 Degrees F
Horsepower Rating
1 hp
Surge Protection
Yes
Self Testing
Yes
UL 94 Flammability Rating
V-0
Includes
Wallplate
Receptacle Type
Decorator Duplex
Maximum Operating Temperature
150.8 Degrees F
Grade
Hospital Grade Fed. Spec.
Contact Material
Brass
Pole
2
At Rated Voltage
1 HP
Flammability
Rated V-0 per UL 94
Termination
Back or Side Wire
Grounding Screw
Plated Steel
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Terminal Accom.
14-10 AWG solid or stranded
Amperage
20 A
Face Material
PBT
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Ground Clips
Brass
Line Contacts
Brass
NEMA
WD-1 & WD-6
Screw Terminal Torque
14-18 in-lbs
Short Circuit Current Rating
10kA
ANSI
C-73
Terminal Screws
Plated Steel
Body Material
Polycarbonate
Certification/Listing
UL, CSA, NOM-ANCE
Terminal Clamp
Brass
Function
GFCI
Strap Material
Galvanized Steel
Device Type
Duplex Receptacle Outlet
Operating Temperature
-35C to +66C
Feature
Wallplate Included|Power Indication|Self-Test
Wire
3

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
