  11. Recept, Red, 20 A, GFCI, 2P3W, Back; Side, 1PK

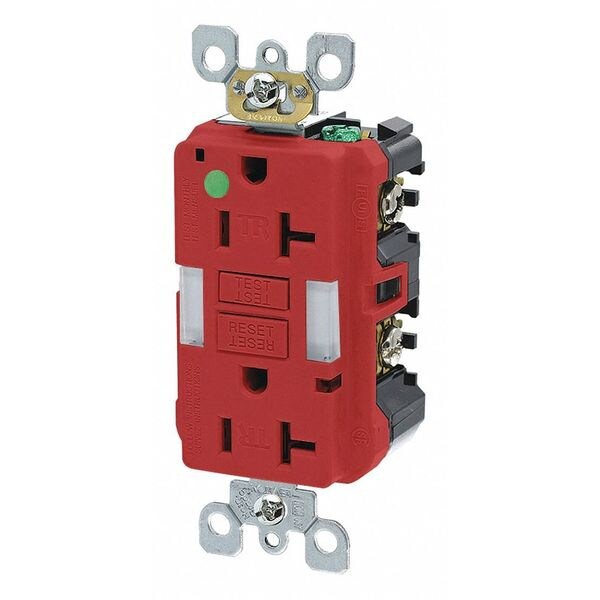

Leviton Recept, Red, 20 A, GFCI, 2P3W, Back; Side, 1PK GFNL2-HGR - main

Recept, Red, 20 A, GFCI, 2P3W, Back; Side, 1PK

  • Mfr # GFNL2-HGR

  • Zoro # G304392952

product price: $42.65
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNL2-HGR
Zoro #
G304392952
UPC #
07847772376
Country of Origin
China

Dimensions

Overall Depth
1.4 in
Mount Hole Center-to-Center Height
1.3 in
Maximum Wire Size
10 AWG
Face Plate Width
1.8 in
Face Plate Height
2.7 in
Minimum Wire Size
14 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Red
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Application Environment
Hospital Grade
HP
1 hp
Weather Resistant - Plugs and Receptacles
No
Power Indicator
Yes
Special Features
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Item - Plugs and Receptacles
GFCI Receptacle
Self-Testing
Yes
Voltage
125 VAC
Voltage - Plugs and Receptacles
125V
Amps - Plugs and Receptacles
20 A
Surge Suppression
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Color
Red
Wiring Method
Back, Side
Color - Plugs and Receptacles
Red
Outlet Type - Plugs and Receptacles
Duplex
Tamper Resistant
Yes
Wiring Method - Plugs and Receptacles
Back and Side
Resistance Properties
Tamper Resistant
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
150.8 Degrees F
Self Testing
Yes
Mount Type
Flush
Voltage Rating
125V AC
Minimum Operating Temperature
-31 Degrees F
Surge Protection
Yes
Contact Material
Brass
Visual Indicator Lights
Power Connected
Grade
Hospital Grade Fed. Spec.
Receptacle Type
Decorator Duplex
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-0
Includes
Strap Material
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
At Rated Voltage
1 HP
ANSI
C-73
Line Contacts
Brass
Face Material
PBT
Termination
Back or Side Wire
Terminal Screws
Plated Steel
Function
GFCI
Terminal Clamp
Brass
Certification/Listing
UL, CSA, NOM-ANCE
NEMA
WD-1 & WD-6
Short Circuit Current Rating
10kA
Strap Material
Galvanized Steel
Flammability
Rated V-0 per UL 94
Wire
3
Pole
2
Ground Clips
Brass
Device Type
Duplex Receptacle Outlet
Amperage
20 A
Terminal Accom.
14-10 AWG solid or stranded
Feature
Tamper-Resistant|Power Indication
Grounding Screw
Plated Steel
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-35C to +66C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Shutter Mechanism
Delrin® Acetal
Body Material
Polycarbonate

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
