  11. Recept, Ivory, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

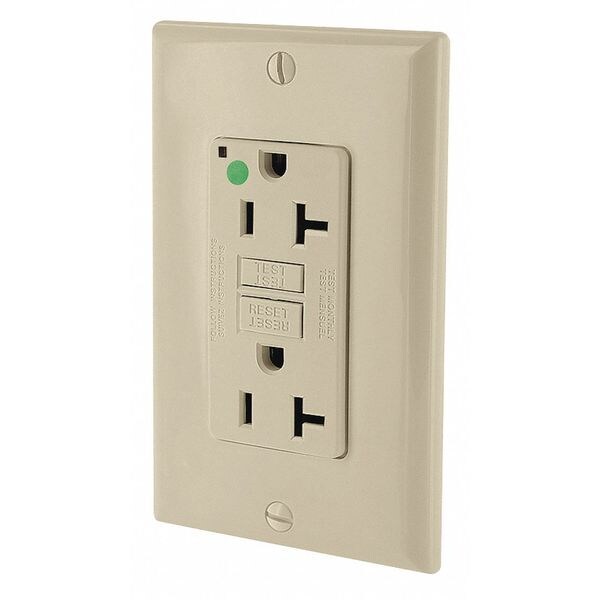

Leviton Recept, Ivory, 20 A, GFCI, 2P3W, Bk;Sd, 1PK GFNT2-HGI - main

Recept, Ivory, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNT2-HGI

  • Zoro # G604392867

product price: $41.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-HGI
Zoro #
G604392867
UPC #
07847772508
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Overall Depth
1.4 in
Face Plate Width
1.7 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Ivory
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Tamper Resistant
No
Weather Resistant - Plugs and Receptacles
No
HP
1 hp
Self-Testing
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method
Back, Side
Color - Plugs and Receptacles
Ivory
Amps - Plugs and Receptacles
20 A
Power Indicator
Yes
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Application Environment
Hospital Grade
Color
Ivory
Wiring Method - Plugs and Receptacles
Back and Side
Item - Plugs and Receptacles
GFCI Receptacle
Voltage
125 VAC
Outlet Type - Plugs and Receptacles
Duplex
Surge Suppression
Yes
Voltage - Plugs and Receptacles
125V
Contact Material
Brass
Visual Indicator Lights
Power Connected
Minimum Operating Temperature
-31 Degrees F
Grade
Hospital Grade Fed. Spec.
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Surge Protection
Yes
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
150.8 Degrees F
UL 94 Flammability Rating
V-0
Self Testing
Yes
Includes
Wallplate
Includes Mounting Hardware
Yes
Mount Type
Flush
Terminal Accom.
14-10 AWG solid or stranded
Device Type
Duplex Receptacle Outlet
Certification/Listing
UL, CSA, NOM-ANCE
Ground Clips
Brass
Amperage
20 A
NEMA
WD-1 & WD-6
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Screw Terminal Torque
14-18 in-lbs
Pole
2
Terminal Clamp
Brass
Flammability
Rated V-0 per UL 94
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
At Rated Voltage
1 HP
Feature
Wallplate Included|Power Indication
Operating Temperature
-35C to +66C
Line Contacts
Brass
Wire
3
Function
GFCI
Short Circuit Current Rating
10kA
Body Material
Polycarbonate
Terminal Screws
Plated Steel
Strap Material
Galvanized Steel
ANSI
C-73
Face Material
PBT
Termination
Back and Side Wire
Grounding Screw
Plated Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
