  11. Recept, Lt Almd, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

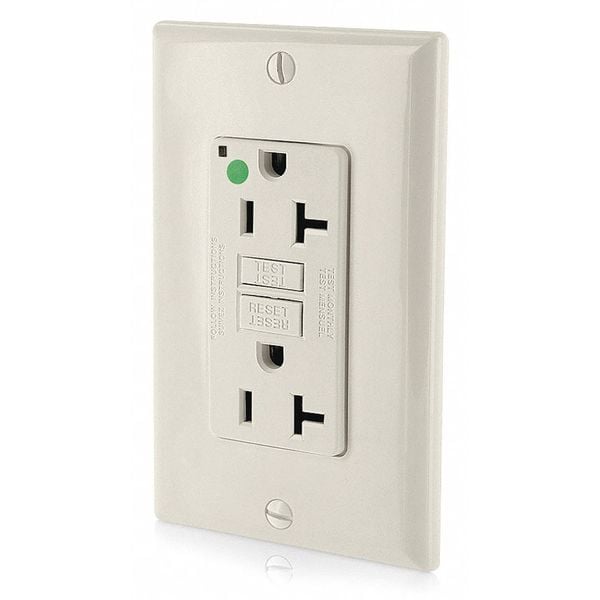

Leviton Recept, Lt Almd, 20 A, GFCI, 2P3W, Bk;Sd, 1PK GFNT2-HGT - main

Recept, Lt Almd, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # GFNT2-HGT

  • Zoro # G804392841

product price: $33.95
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFNT2-HGT
Zoro #
G804392841
UPC #
07847772509
Country of Origin
China

Dimensions

Maximum Wire Size
10 AWG
Overall Depth
1.4 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Number of Outlets
2
Housing Color
Light Almond
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Amps - Plugs and Receptacles
20 A
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
Voltage - Plugs and Receptacles
125V
Self-Testing
Yes
Tamper Resistant
No
HP
1 hp
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Surge Suppression
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Wiring Method
Back, Side
Power Indicator
Yes
Weather Resistant - Plugs and Receptacles
No
Application Environment
Hospital Grade
Color - Plugs and Receptacles
Light Almond
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Minimum Operating Temperature
-31 Degrees F
Visual Indicator Lights
Power Connected
Includes
Wallplate
Contact Material
Brass
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
Maximum Operating Temperature
150.8 Degrees F
Surge Protection
Yes
Self Testing
Yes
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-0
Mount Type
Flush

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
