Shop LEVITON

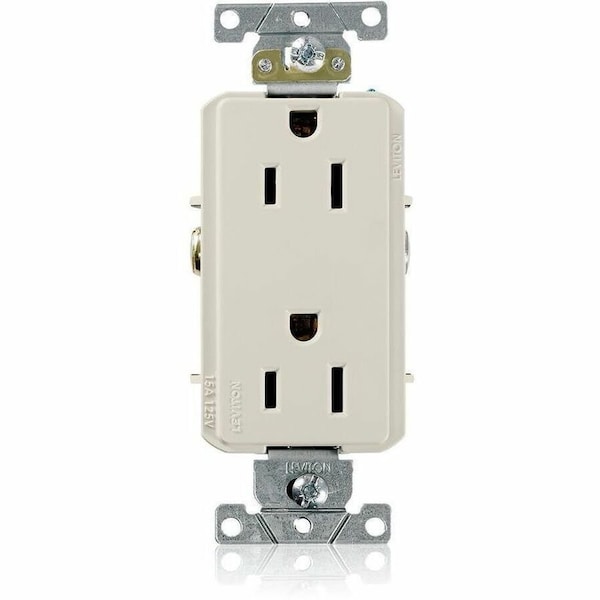

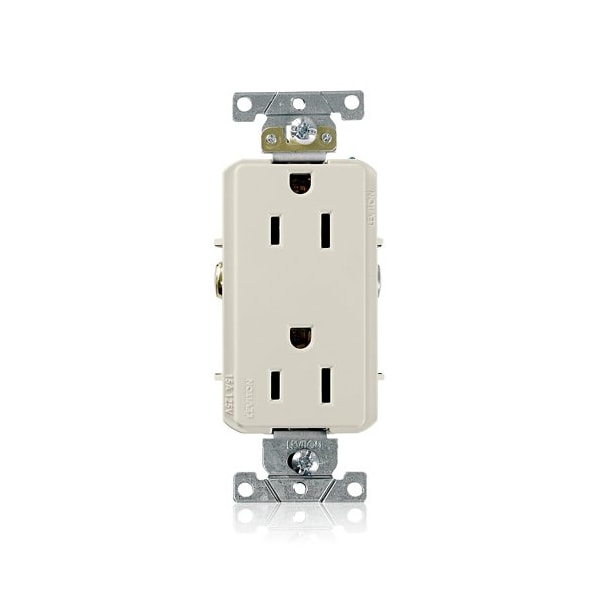

Receptacle Outlet, 15A, Light Almond, 125V

  • Mfr # 16252-T

  • Zoro # G022982145

product price:
$
6.19
/ea

Key Features

Face Plate Height
2.6 in
Minimum Operating Temperature
-40 Degrees C
Housing Material
PBT Polyester
Number of Poles
2
Current Rating
15 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
16252-T
Zoro #
G022982145
UPC #
078477271261
Country of Origin
Mexico
Minimum Operating Temperature
-40 Degrees C
Housing Material
PBT Polyester
Number of Poles
2
Current Rating
15 A
Number of Outlets
2
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight
Contact Material
Phosphor Bronze
Wiring Method
Back/Side
Features
Smooth Face
Receptacle Type
Duplex
Item
Decora Plus Duplex Receptacle Outlet
NEMA Receptacle Configuration
5-15R
UL 94 Flammability Rating
V-2
Horsepower Rating
1/2 hp
Number of Wires
3
Resistance Properties
Tamper Resistant
Market
Industrial
Housing Color
Light Almond
Standards
CSA, FULS Marking, UL
Grounding
Grounded
Maximum Operating Temperature
60 Degrees C
Wire Connection Type
Screw Terminals
Voltage Rating
125V AC

Description

Decora Plus Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Housing Color Light Almond, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1/2 hp, UL 94 Flammability Rating V-2
