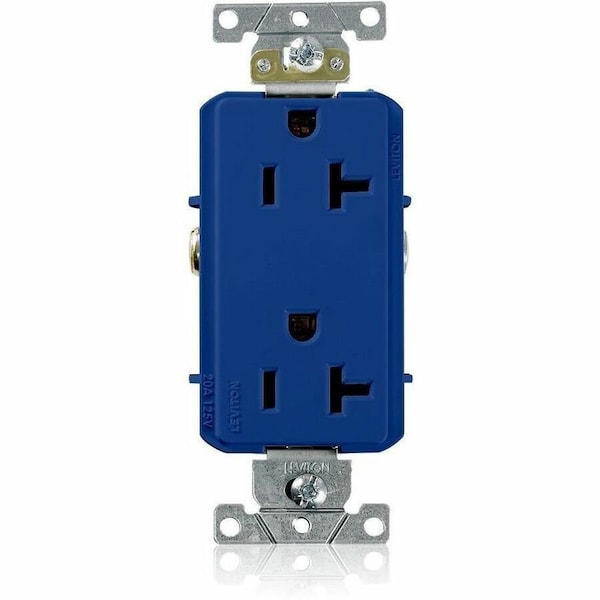

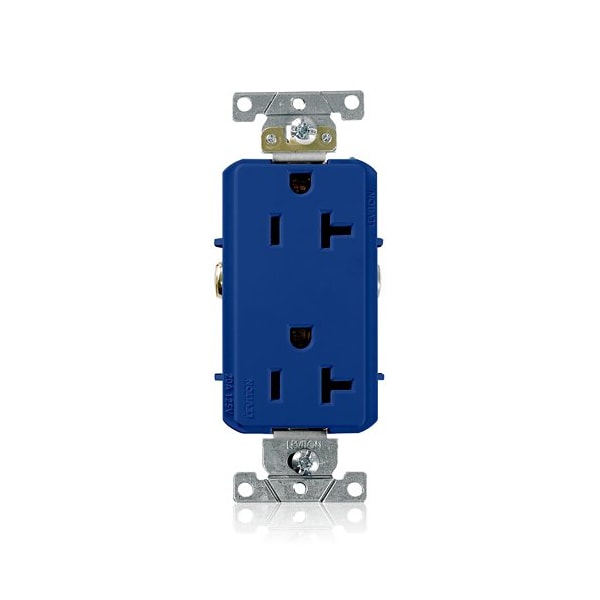

Receptacle Outlet, 20A, Blue, 125V
Mfr # 16352-BU
Zoro # G722982322
product price:Â
$
6.69
/ea
Key Features
Horsepower Rating
1 hp
Number of Outlets
2
Features
Smooth Face
Face Plate Width
1.6 in
UL 94 Flammability Rating
V-2
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16352-BU
- Zoro #
- G722982322
- UPC #
- 078477705421
- Country of Origin
- Mexico
- Horsepower Rating
- 1 hp
- Number of Outlets
- 2
- Features
- Smooth Face
- UL 94 Flammability Rating
- V-2
- Number of Wires
- 3
- For Environment
- Food and Beverage, Oily/Greasy
- Market
- Industrial
- NEMA Receptacle Configuration
- 5-20R
- Current Rating
- 20 A
- Grounding
- Grounded
- Minimum Operating Temperature
- -40 Degrees C
- Housing Color
- Blue
- Receptacle Type
- Duplex
- Item
- Decora Plus Duplex Receptacle Outlet
- Housing Material
- PBT Polyester
- Voltage Rating
- 125V AC
- Number of Poles
- 2
- Wire Connection Type
- Screw Terminals
- Connection Orientation
- Straight
- Maximum Operating Temperature
- 60 Degrees C
- Contact Material
- Brass
- Wiring Method
- Back/Side
- Standards
- CSA, FULS Marking, UL
Description
Decora Plus Duplex Receptacle Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Blue, Housing Material PBT Polyester, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
