This item is Discontinued.

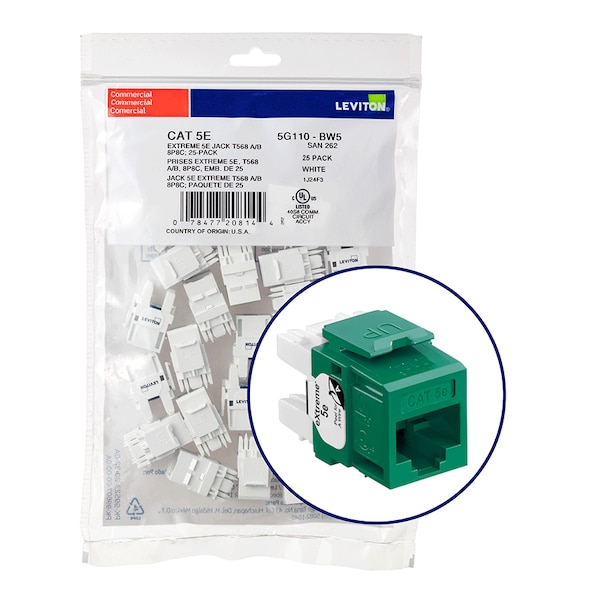

Leviton RJ JACK AND MODULE JACK EXTREME 5E 25PK GN 5G110-BV5

RJ JACK AND MODULE JACK EXTREME 5E 25PK GN (Discontinued)

  • Mfr # 5G110-BV5
  • Zoro # G4042982
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5G110-BV5
Zoro #
G4042982
UPC #
078477208236
Country of Origin
United States

Dimensions

Width
9 in
Height
1.50 in
Length
6.00 in
Dimensions
0.89 in H x 0.64 in W x 1.21 in D

Details

Cable Type
8-Conductor UTP Copper Cat 5, 5e and 6
Material
Plastic
Color
Green
Connector Type
RJ-45 Network - Female
Termination Type
110 Punchdown
Type
8-Conductor 8-Position Component Rated
Number of Ports
1
Application
Commercial, Voice, Data and Video Applications
Standards and Certifications
TIA/EIA cULus Listed
TIA/EIA
TIA-568-B
Contact Surface Material
50 microinches thick Gold-Plated
Flammability
Rated V-0 per UL 94
Body Material
High-Impact Fire-Retardant Plastic
Contact Base Material
Phosphor Bronze
Category Rating
Cat 5e
Contact Sub-Surface Material
100 microinches thick Nickel-Plated
Shielding
UTP
Wiring Standard
T568A T568B
CSA
Certified
Connector Feature
Channel/Component Rated
Body Color
Green
Module Type
Category 5e
Position / Conductor
8P8C
ISO/IEC
11801
FCC
Part 68 Compliant
NEC
Article 800 Compliant
UL
cULus Listed
Style Name
eXtreme
Module Style
Connector
Certifications & Standards
UL Listed
Product Series
5e+
Product Line
GigaMax
Connector Details
RJ-45 Network Female
110 Block
Yes
Product Name
GigaMax 5e+ Component-Rated Keystone Jack
Product Type
Network Connector
Product Color
Green
Environmental Conditions
Flammability (Rated V-0 per UL94)
Mounting Type
Panel/Surface
Standard
ANSI\TIA-568-C.2;ISO\IEC 11801;ANSI\TIA-1096-A (Formerly FCC Part 68);cULus Listed;CSA Certified

Description

GigaMax 5e+ QuickPort Connector Quickpack, CAT 5e, 25-pack, green
