  5. RJ JACK AND MODULE JACK EXTREME 5E 25PK IV

This item is Discontinued.

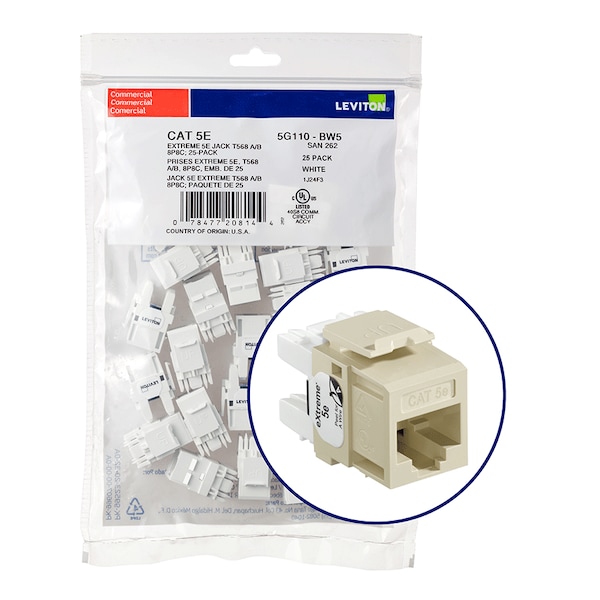

Leviton RJ JACK AND MODULE JACK EXTREME 5E 25PK IV 5G110-BI5

RJ JACK AND MODULE JACK EXTREME 5E 25PK IV (Discontinued)

  • Mfr # 5G110-BI5
  • Zoro # G4084806
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5G110-BI5
Zoro #
G4084806
UPC #
078477208120
Country of Origin
United States

Dimensions

Width
9 in
Height
1.50 in
Size
0.89 H x 0.64 W x 1.21 D in
Length
6.00 in

Details

Cable Type
8-Conductor UTP Copper Cat 5, 5e and 6
Color
Ivory
Termination Type
110 Punchdown
Connector Type
RJ-45 Network - Female
Type
CAT 5e+ Quickport Connector
Application
Commercial, Voice, Data and Video Applications
Style Name
eXtreme
ISO/IEC
11801
Module Style
Connector
Body Color
Ivory
NEC
Article 800 Compliant
Connector Feature
Channel/Component Rated
Shielding
UTP
Body Material
High-Impact Fire-Retardant Plastic
Standards and Certifications
TIA/EIA cULus Listed
Contact Sub-Surface Material
100 microinches thick Nickel-Plated
Category Rating
Cat 5e
Flammability
Rated V-0 per UL 94
Contact Surface Material
50 microinches thick Gold-Plated
Position / Conductor
8P8C
FCC
Part 68 Compliant
TIA/EIA
TIA-568-B
CSA
Certified
Module Type
Category 5e
Wiring Standard
T568A T568B
UL
cULus Listed
Contact Base Material
Phosphor Bronze
Product Series
5e+
110 Block
Yes
Certifications & Standards
UL Listed
Product Name
GigaMax 5e+ Component-Rated Keystone Jack
Product Line
GigaMax
Connector Details
RJ-45 Network Female
Product Color
Ivory
Product Type
Network Connector
Mounting
Wallplate, Panel
Standard
ANSI\TIA-568-C.2;ISO\IEC 11801;ANSI\TIA-1096-A (Formerly FCC Part 68);cULus Listed;CSA Certified
Environmental Conditions
Flammability (Rated V-0 per UL94)

Description

GigaMax 5e+ QuickPort Connector Quickpack, CAT 5e, 25-pack, ivory
