  5. RJ JACK AND MODULE JACK GIGAMAX 5E 25PK IV

This item is Discontinued.

Leviton RJ JACK AND MODULE JACK GIGAMAX 5E 25PK IV 5G108-BI5

RJ JACK AND MODULE JACK GIGAMAX 5E 25PK IV (Discontinued)

  • Mfr # 5G108-BI5
  • Zoro # G4044337
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5G108-BI5
Zoro #
G4044337
UPC #
78477202937
Country of Origin
United States

Dimensions

Height
1.50 in
Width
9 in
Length
6.00 in
Dimensions
0.89 in H x 0.64 in W x 1.17 in D

Details

Cable Type
8-Conductor UTP Copper Cat 5, 5e and 6
Material
Plastic
Color
Ivory
Type
8-Conductor 8-Position
Connector Type
RJ-45 Network - Female
Number of Ports
1
Termination Type
110 Punchdown
Application
Commercial, Residential, MDU and High Megabit Applications
Standards and Certifications
TIA/EIA cULus Listed
TIA/EIA
TIA-568-B
Position / Conductor
8P8C
Wiring Standard
T568A T568B
Contact Surface Material
50 microinches thick Gold-Plated
Style Name
GigaMax
Module Style
Connector
Body Material
High-Impact Fire-Retardant Plastic
Category Rating
Cat 5e
Contact Sub-Surface Material
100 microinches thick Nickel-Plated
NEC
Article 800 Compliant
FCC
Part 68 Compliant
Shielding
UTP
CSA
Certified
Contact Base Material
Phosphor Bronze
Body Color
Ivory
Flammability
Rated V-0 per UL 94
Connector Feature
Channel-Rated
UL
cULus Listed
Module Type
Category 5e
Certifications & Standards
UL Listed
Connector Details
RJ-45 Network Female
Product Type
Network Connector
Product Series
5e
Product Color
Ivory
110 Block
Yes
Product Name
GigaMax 5e Channel-Rated Keystone Jack
Product Line
GigaMax
Mounting Type
Panel/Surface
Environmental Conditions
Flammability (Rated V-0 per UL94)
Standard
ANSI\TIA-568-C.2;cULus Listed;TIA-1096-A;CSA Certified

Description

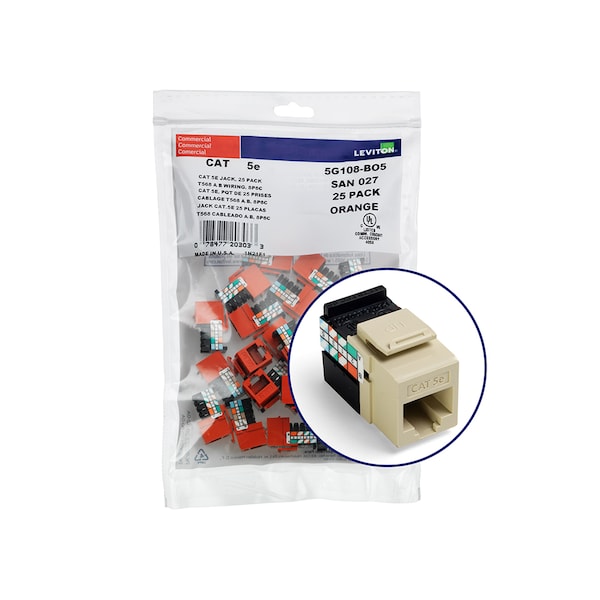

GigaMax 5e QuickPort Connector Quickpack, CAT 5e, 25-pack, ivory
