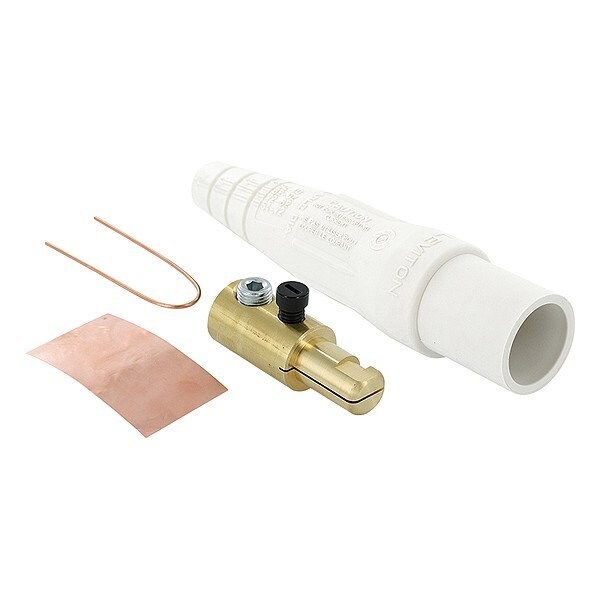

Single Pole Inline, 400 A, Male, White
Mfr # 16D23-UW
Zoro # G422588091
product price:Â $35.39
/eaKey Features
Terminal Connection Type
Single Set Screw
Standards
CSA, NEC, UL
Minimum Wire Size
2/0 AWG
Current Rating
400 A
Wire Rope Length
6.98 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16D23-UW
- Zoro #
- G422588091
- UPC #
- 78477720356
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 2/0 AWG
- Wire Rope Length
- 6.98 in
- Overall Width
- 1.72 in
- Maximum Wire Size
- 4/0 AWG
Details
- Terminal Connection Type
- Single Set Screw
- Standards
- CSA, NEC, UL
- Current Rating
- 400 A
- Resistance Properties
- Weather Resistant, Shatter and Crack Resistant
- Housing Material
- Thermoplastic Elastomer
- Series
- 16
- For Location
- Outdoor
- Contact Type
- Single Cam
- Contact Material
- Brass
- NEMA Enclosure Rating
- 3R
- Item
- Single Pole Inline
- End Type
- Taper Nose
- Voltage Rating
- 600V AC, 600V DC
- Gender
- Male
- Housing Color
- White
Description
Single Pole Inline, Contact Material Brass, Current Rating 400 A, Gender Male, Housing Color White, Housing Material Thermoplastic Elastomer, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Terminal Connection Type Single Set Screw, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, NEMA Enclosure Rating 3R, Standards CSA, NEC, UL, Contact Type Single Cam, For Location Outdoor, Overall Length 6.98 in, Overall Width 1.72 in
