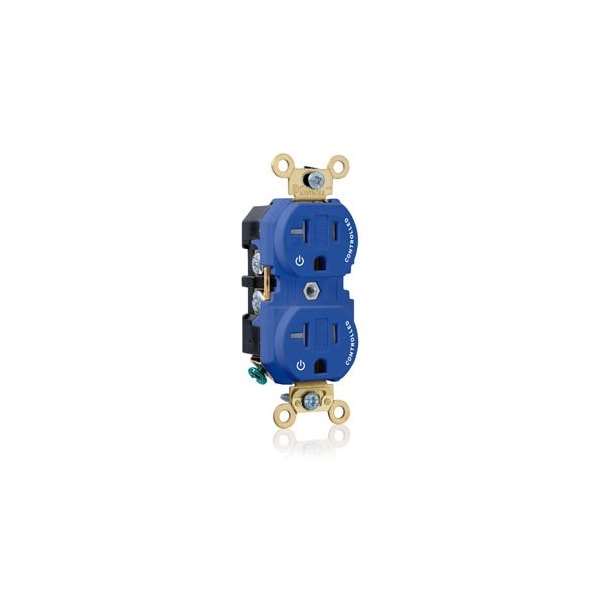

Single Receptacle/Outlet, 20A, Blue, 125V

Mfr # 5362-2PB
Zoro # G522982133

28.89

Key Features

Receptacle Type

Duplex

Face Plate Height

2.6 in

Housing Material

Nylon

Horsepower Rating

1 hp

Maximum Operating Temperature

75 Degrees C

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: 5362-2PB
Zoro #: G522982133
UPC #: 078477706503
Country of Origin: Mexico

Dimensions

Face Plate Height: 2.6 in
Maximum Wire Size: 10 AWG
Overall Depth: 1.3 in
Face Plate Width: 1.3 in
Mount Hole Center-to-Center Height: 3.3 in
Minimum Wire Size: 14 AWG

Details

Receptacle Type: Duplex
Housing Material: Nylon
Horsepower Rating: 1 hp
Maximum Operating Temperature: 75 Degrees C
Housing Color: Blue
Standards: CSA, FULS Marking, UL
Contact Material: Brass
Number of Outlets: 2
UL 94 Flammability Rating: V-2
Grounding: Grounded
Current Rating: 20 A
NEMA Receptacle Configuration: 5-20R
Number of Wires: 3
For Environment: Food and Beverage, Oily/Greasy
Market: Industrial
Voltage Rating: 125V AC
Features: Smooth Face
Resistance Properties: Tamper Resistant
Number of Poles: 2
Wiring Method: Back/Side
Item: Single Receptacle/Outlet
Connection Orientation: Straight
Minimum Operating Temperature: -40 Degrees C
Wire Connection Type: Screw Terminals

Description

Single Receptacle/Outlet, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Housing Color Blue, Housing Material Nylon, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Horsepower Rating 1 hp, UL 94 Flammability Rating V-2
