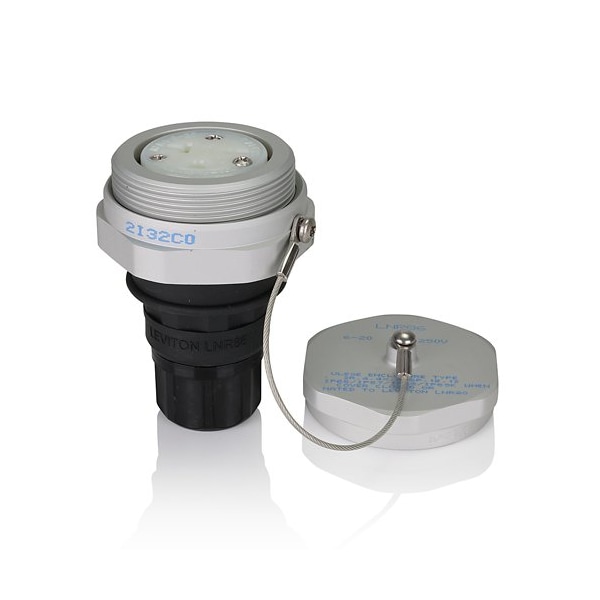

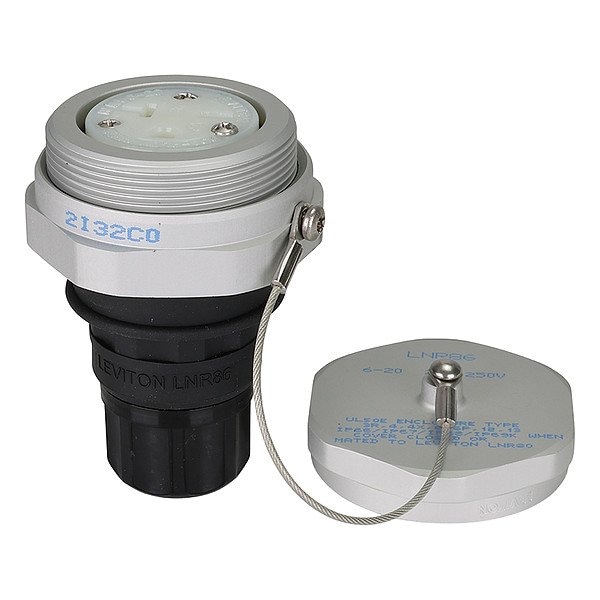

Straight Blade Connector, 20 A, Black
Mfr # LNR86-4E
Zoro # G522729004
product price:Â $143.99
/ea
Free Shipping & Returns
Key Features
NEMA Receptacle Configuration
6-20R
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
LNR86-4E
Zoro #
G522729004
UPC #
-
Country of Origin
Mexico
Dimensions
For Maximum Cable Diameter
0.67 in
For Minimum Cable Diameter
0.38 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Overall Length
4.2 in
Description
Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, NEMA Receptacle Configuration 6-20R, Number of Poles 2, Number of Wires 3, Resistance Properties Corrosion Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Cap Type Screw-On Cap, For Maximum Cable Diameter 0.67 in, For Minimum Cable Diameter 0.38 in, Grounding Grounded, Horsepower Rating Not Applicable, Housing Material Nylon, IP Rating IP66, IP67, IP68, IP69K
