Shop LEVITON

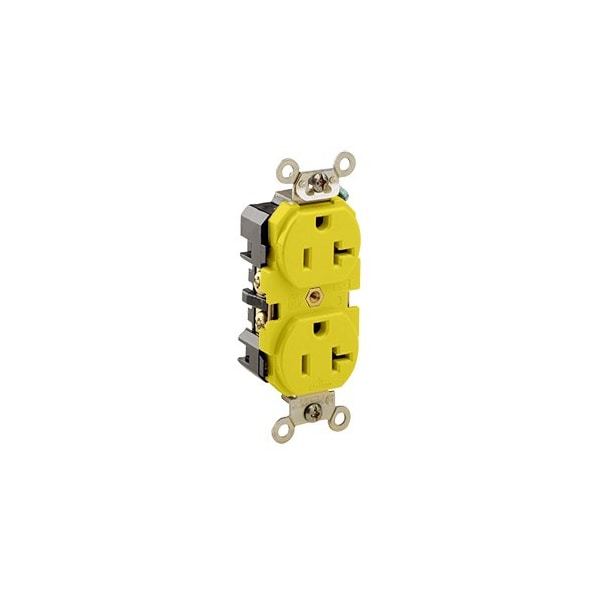

Straight Blade Connector, 20 A, Yellow

  • Mfr # 53CM-62
  • Zoro # G122586236
product price:
$
54.49
/ea

Key Features

NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
53CM-62
Zoro #
G122586236
UPC #
78477820773
Country of Origin
Mexico
Item
Straight Blade Connector
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Yellow
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No. 42 File 152105, NEMA WD-6, NOM 057, UL 498 File E13399, UL Fed Spec WC-596 File E13399
Resistance Properties
Corrosion Resistant
Power Indicating Light
No
Minimum Operating Temperature
-40 Degrees C
Series
Pass & Seymour CR20Y
Cap Type
No Cap or Cover
UL 94 Flammability Rating
V-2
Housing Material
Thermoplastic Nylon
Horsepower Rating
1 hp
Market
Industrial
Connection Orientation
Straight
Shrouded
Yes
Maximum Operating Temperature
60 Degrees C

Dimensions

For Maximum Cable Diameter
0.1 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
For Minimum Cable Diameter
0.06 in

Description

Straight Blade Connector, Connection Orientation Straight, Current Rating 20 A, Housing Color Yellow, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Resistance Properties Corrosion Resistant, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Cap Type No Cap or Cover, For Maximum Cable Diameter 0.1 in, For Minimum Cable Diameter 0.06 in, Grounding Grounded, Horsepower Rating 1 hp, Housing Material Thermoplastic Nylon, IP Rating Not Rated, Market Industrial
