  6. Straight Blade Plug, 10-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

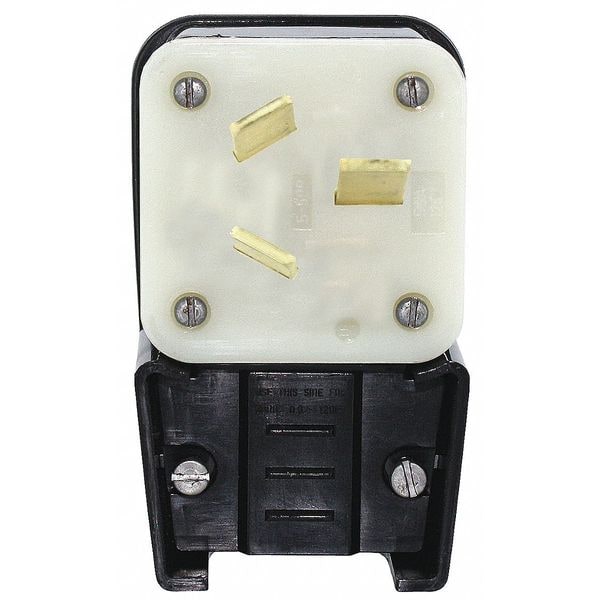

Leviton Straight Blade Plug, 10-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded 9450-P - main

Straight Blade Plug, 10-50P, 50 A, 125/250V AC, 3 Pole, Screw Terminals, Non-Grounded

  • Mfr # 9450-P

  • Zoro # G804393305

product price:  $52.67
/ea

Key Features

NEMA Plug Configuration
10-50P
Phase
Single
Number of Poles
3
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
9450-P
Zoro #
G804393305
UPC #
07847780994
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.375 in
For Minimum Cable Diameter
0.625 in
Cord Size
0.625 in to 10.375 in
Body Length
1.89 in
Maximum Wire Size
4 AWG
Minimum Wire Size
10 AWG

Details

Item
Straight Blade Plug
NEMA Plug Configuration
10-50P
Current Rating
50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Non-Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Crack Resistant, Moisture Resistant, Shatter Resistant
Material
Super Tough Nylon
Grade - Plugs and Receptacles
Industrial
Special Features
Ratings are permanently marked on device
Number of Wires
3
NEMA Plug Configuration - Plugs and Receptacles
10-50P
Grade
General Use
HP
3
UL 94 Flammability Rating
V-2
Shrouded
No
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Blade Material
Brass
Insulation Material
Nylon
Housing Material
Super Tough Nylon
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Market
Industrial
Horsepower Rating
3 hp
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Operating Temp.
-40°C to 60°C
Body Material
Super Tough Nylon
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Dielectric Strength
Withstands 2000V per UL498
Assembly Screws
Steel, Zinc Plated
Torque Range
16-20 in-lbs
Wire Gauge
10-4 AWG; Up to 4 AWG

Description

Straight Blade Plug, Connection Orientation Angled, Current Rating 50 A, Grounding Non-Grounded, Horsepower Rating 3 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration 10-50P, Number of Blades 3, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard
