  11. Straight Blade Plug, 14-30P, 14-50P, 30/50 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

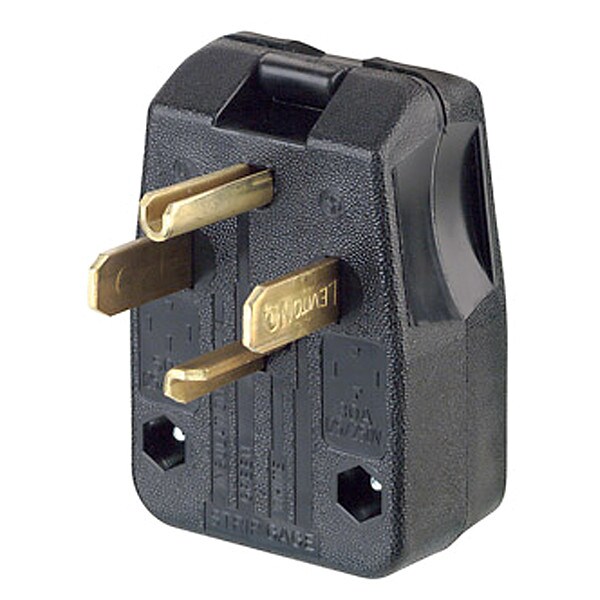

Leviton Straight Blade Plug, 14-30P, 14-50P, 30/50 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded 275-E - main

Straight Blade Plug, 14-30P, 14-50P, 30/50 A, 125/250V AC, 3 Pole, Screw Terminals, Grounded

  • Mfr # 275-E

  • Zoro # G504393315

product price: $23.69
/ea

Key Features

NEMA Plug Configuration
14-30P, 14-50P
Current Rating
30/50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
275-E
Zoro #
G504393315
UPC #
07847764496
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1.125 in
For Minimum Cable Diameter
0.75 in
Cord Size
0.75 in to 10.125 in
Maximum Wire Size
6 AWG
Minimum Wire Size
10 AWG
Overall Length
3.49 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
14-30P, 14-50P
Current Rating
30/50 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Grounding
Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Crack Resistant, Moisture Resistant, Shatter Resistant
Material
Thermoplastic
Number of Wires
4
Grade - Plugs and Receptacles
Commercial
NEMA Plug Configuration - Plugs and Receptacles
14-30P, 14-50P
Grade
Commercial
Special Features
Abuse-Resistant, Chemical Resistant, Moisture Resistant
Polarized
No
Minimum Operating Temperature
-40 Degrees F
For Location
Indoor, Outdoor
Maximum Operating Temperature
140 Degrees F
Housing Material
Thermoplastic
Blade Material
Brass
Horsepower Rating
2 hp
UL 94 Flammability Rating
V-2
Market
Commercial
Dielectric Strength
Withstands 2000V per UL498
Operating Temp.
-40°C to 60°C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Body Material
Thermoplastic
Flammability
Rated V-2 per UL 94
Assembly Screws
Steel, Zinc Plated
Temp. Rise
Max 30C after 50 cycles OL at 150 percent rated current
Wire Gauge
10-6 AWG

Description

Plug, Connection Orientation Angled, Current Rating 30 A, 50 A, Grounding Grounded, Horsepower Rating 2 hp, Housing Color Black, IP Rating Not Rated, NEMA Plug Configuration 14-30P, 14-50P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized No, Resistance Properties Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant, UL 94 Flammability Rating V-2, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
