  11. Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Screw Terminals, Grounded

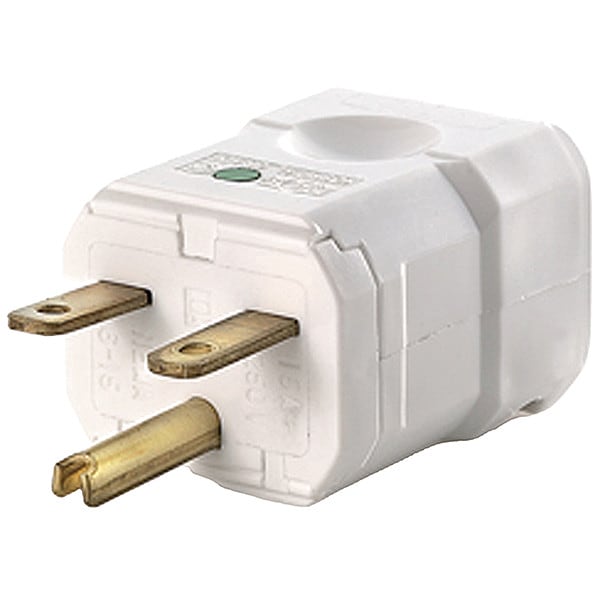

Leviton Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Screw Terminals, Grounded 8656-V - main

Straight Blade Plug, 6-15P, 15 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 8656-V

  • Zoro # G104393340

product price: $12.89
/ea

Key Features

NEMA Plug Configuration
6-15P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8656-V
Zoro #
G104393340
UPC #
07847705522
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.70 in
For Minimum Cable Diameter
0.245 in
Cord Size
0.245 in to 0.7 in
Maximum Wire Size
10 AWG
Minimum Wire Size
18 AWG
Body Length
1.81 in

Details

Item
Straight Blade Plug
NEMA Plug Configuration
6-15P
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
White
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2, UL 498
Resistance Properties
Chemical Resistant, Crack Resistant, Moisture Resistant, Shatter Resistant
Number of Wires
3
Special Features
Chemical Resistant, Impact-Resistant
Grade
Hospital Grade
NEMA Plug Configuration - Plugs and Receptacles
6-15P
Material
Super Tough Nylon
Grade - Plugs and Receptacles
Hospital
Corrosion Resistant
Yes
Housing Material
Super Tough Nylon
Blade Material
Brass
Horsepower Rating
1 1/2 hp
For Environment
Dry
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-2
Shrouded
No
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Market
Industrial
Dielectric Strength
Withstands 2000V per UL498
Terminal ID
Brass-Hot, Green-Ground, White-Neutral
Clamp Insert
Nylon
Temp. Rise
Max 30C after 250 cycles OL at 200 percent rated current
Assembly Screws
Steel, Zinc Plated
Environment
Dry
Operating Temp.
-40°C to 60°C
Terminal Screws
Brass
Body Material
Super Tough Nylon
Wire Gauge
18-10 AWG
Cord-Clamp
Nylon

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 15 A, Grounding Grounded, Horsepower Rating 1 1/2 hp, Housing Color White, IP Rating Not Rated, NEMA Plug Configuration 6-15P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Shatter and Crack Resistant, Chemical Resistant, Moisture Resistant, UL 94 Flammability Rating V-2, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
