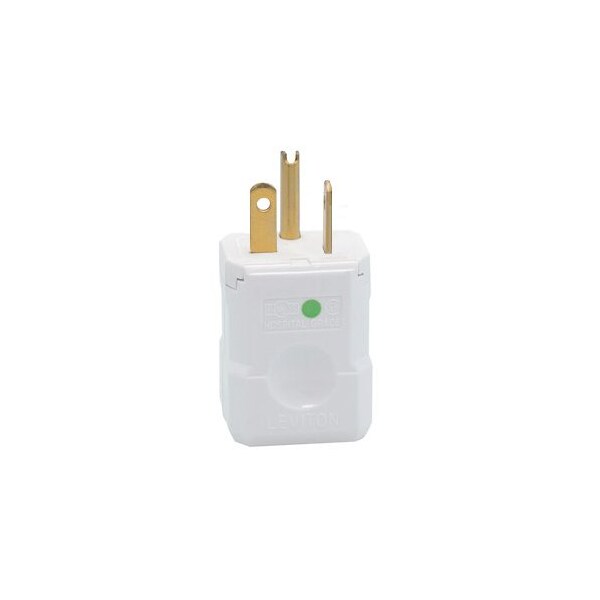

Straight Blade Plug, 6-20P, 20 A, 250V AC, 2 Pole, Screw Terminals, Grounded

  • Mfr # 8456-V
  • Zoro # G0825021
product price:
$
14.29
/ea

Key Features

NEMA Plug Configuration
6-20P
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8456-V
Zoro #
G0825021
UPC #
-
Country of Origin
Mexico
Item
Straight Blade Plug
NEMA Plug Configuration
6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Hinged
Connection Orientation
Straight
Grounding
Grounded
Housing Color
White
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NOM 057 Certified
Resistance Properties
Impact Resistant
Grade
Hospital Grade
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Insulation Material
Thermoplastic
Market
Industrial
For Environment
Dry
Blade Material
Brass
Polarized
Yes
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Shrouded
No
NEMA Enclosure Rating
Not Rated
Power Indicating Light
No
Series
Valise

Description

Straight Blade Plug, Connection Orientation Straight, Current Rating 20 A, Grounding Grounded, Horsepower Rating 1/2 hp, Housing Color White, IP Rating Not Rated, NEMA Plug Configuration 6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Shatter and Crack Resistant, UL 94 Flammability Rating V-2, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Face Diameter Not Applicable, For Maximum Cable Diameter 0.655 in
