  11. Straight Blade Receptacle, 14-30R, 30 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

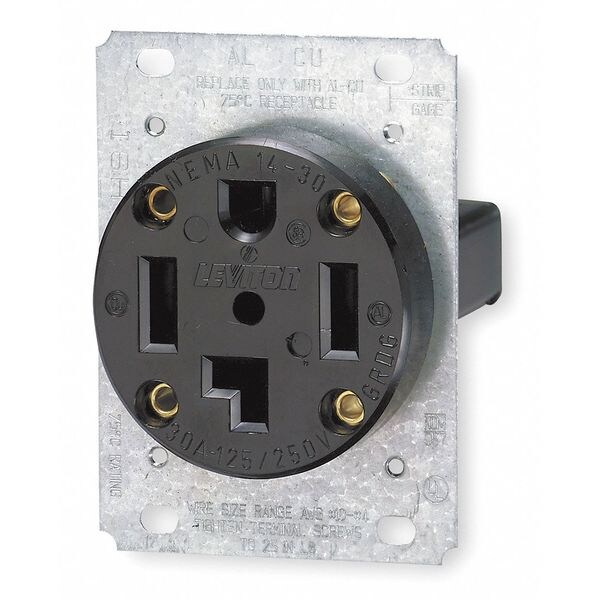

Leviton Straight Blade Receptacle, 14-30R, 30 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded 278-S00 - main

Straight Blade Receptacle, 14-30R, 30 A, 125/250V AC, 3 Pole, 4 Wire, Flush Mount, Grounded

  • Mfr # 278-S00

  • Zoro # G404393323

product price: $8.45
/ea
Sold in multiples of 2 for $16.90

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
14-30R
Phase
Single
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
278-S00
Zoro #
G404393323
UPC #
07847769531
Country of Origin
Mexico

Dimensions

Face Plate Height
3.8 in
Face Plate Width
2.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, C22.2 No. 14, C22.2 No. 65, CSA C22.2 No. 42, File E13399, NEMA WD-6, UL 486E, UL 498
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Single Receptacles
Material
Thermoplastic (Body and Face)
Wiring Method - Plugs and Receptacles
Side
NEMA Receptacle Configuration - Plugs and Receptacles
14-30R
Mounting Type - Plugs and Receptacles
Flush
HP
2 hp
Application Environment
Industrial
Outlet Type - Plugs and Receptacles
Single
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Includes
Strap Material
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
Not Rated
Number of Outlets
1
Market
Industrial
Horsepower Rating
2 hp
Grade
Federal Specification
Connection Orientation
Straight
Housing Material
Thermoplastic
Polarized
No
Includes Mounting Hardware
Yes

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 14-30R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable
