  11. Straight Blade Receptacle, 15-60R, 60 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Three, Black

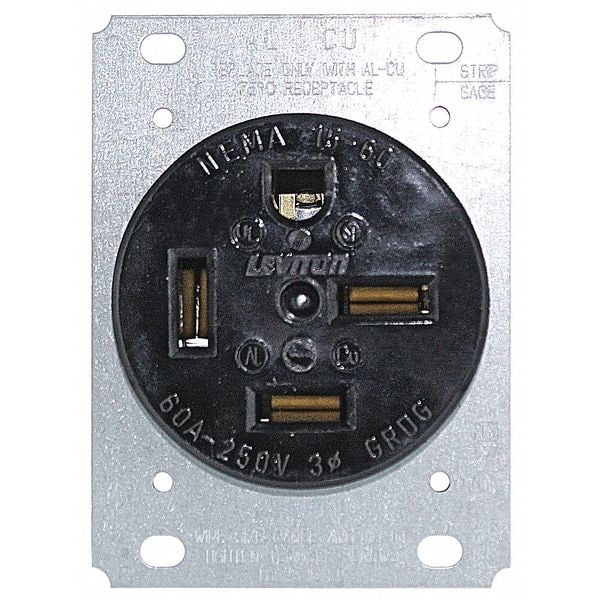

Leviton Straight Blade Receptacle, 15-60R, 60 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Three, Black 8460 - main

Straight Blade Receptacle, 15-60R, 60 A, 250V AC, 3 Pole, 4 Wire, Flush Mount, Three, Black

  • Mfr # 8460

  • Zoro # G604836477

product price: $97.99
/ea
Free Shipping & Returns

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
15-60R
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8460
Zoro #
G604836477
UPC #
07847784334
Country of Origin
Mexico

Dimensions

Minimum Wire Size
4 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
15-60R
Current Rating
60 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
HP
10 hp
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Single Receptacles
Mounting Type - Plugs and Receptacles
Flush
Outlet Type - Plugs and Receptacles
Single
Material
Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
15-60R
Application Environment
Industrial
Number of Gangs
1
Flange Shape
Rectangular
Maximum Operating Temperature
140 Degrees F
Housing Material
Nylon
GFCI
No
Shrouded
No
Contact Material
Brass
AFCI
No
Market
Commercial, Industrial
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Grade
Federal Specification
Surge Protection
No
Hub Type
Dead End
Polarized
Yes
Horsepower Rating
10 hp
Number of Outlets
1
Line Contacts
Brass Double-Wipe
Dielectric Voltage
Withstands 2000V per UL498
Terminal Accom.
Up to 4 AWG
Face Material
Nylon
Body Material
Nylon
Feature
3-Phase
Pole
3
Strap Material
Galvanized Steel
At Rated Voltage
10 HP
Current Limiting
Full Rated Current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
4
CSA C22.2 No. 42
File 152105
Torque Range
25 in-lbs
Operating Temperature
-40°C to 60°C
ANSI
C-73
Temperature Rise
Max 30C after 50 cycles OL at 150 percent rated current
Device Type
Straight Blade Receptacle

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 60 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Nylon, Mount Type Recessed, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 15-60R, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Three, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Standards ANSI C73, CSA C22.2 No. 42 File E152105
