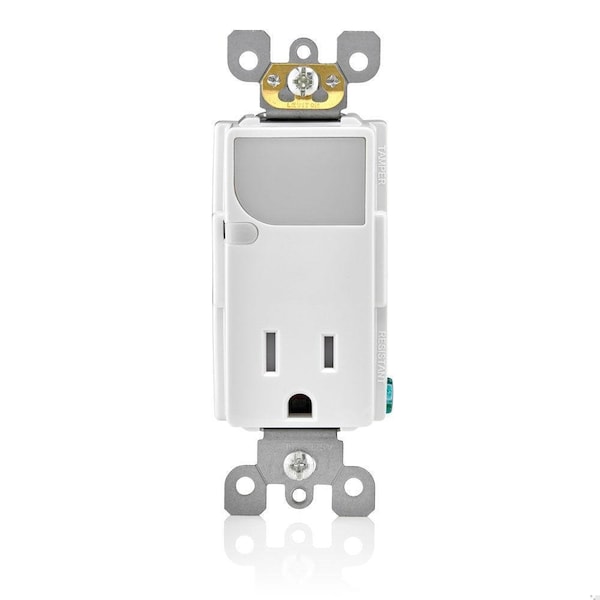

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 1 Pole, 3 Wire, Flush Mount, Grounded T6525-W - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 1 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # T6525-W

  • Zoro # G111899064

product price:  $14.89
/ea

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T6525-W
Zoro #
G111899064
UPC #
078477454176
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
12 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
1
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
UL Listed, cULus Listed
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Connection Orientation
Straight
GFCI
No
Number of Gangs
1
Features
Nightlight, Shutter Mechanism Inside the Receptacle Blocks Access to the Contacts Unless a Two- or Three-Prong Plug is Inserted, Helping Ensure Hairpins, Keys, Etc., will be Locked Out, TR Symbol on the Strap or Body of Device Meets NEC Requirement
AFCI
No
Market
Residential
Grade
General Use
Housing Material
Polycarbonate, Thermoplastic
Polarized
Yes
Cover Type
No Cover

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 1, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant, Standards UL/CULus
