  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

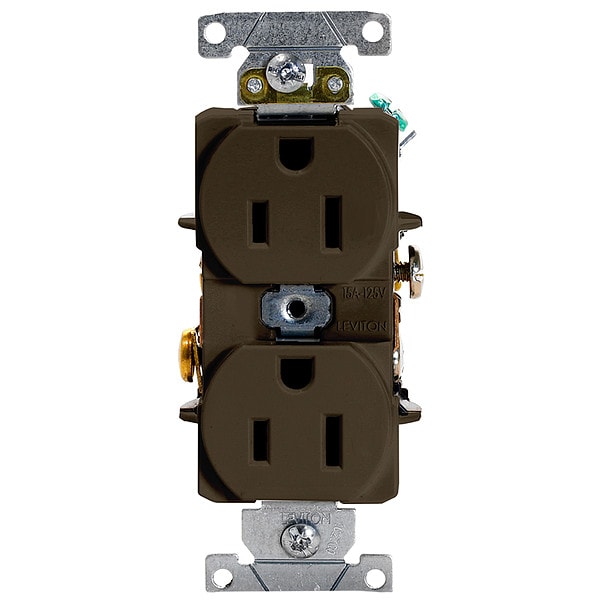

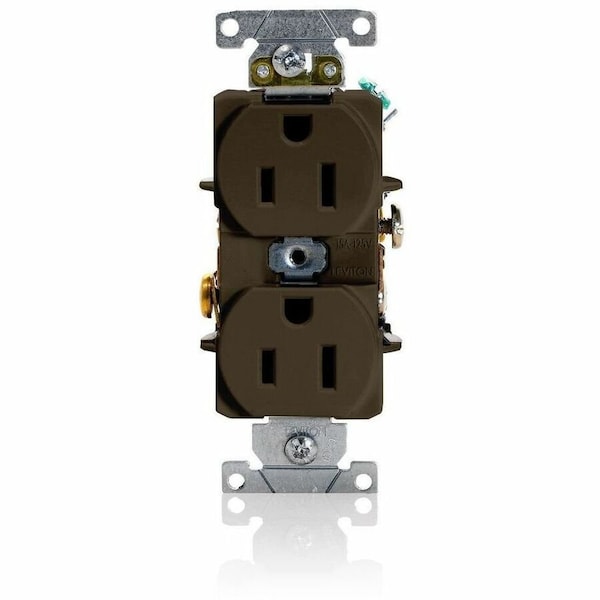

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded 5252 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Grounded

  • Mfr # 5252

  • Zoro # G604256015

product price: $8.19
/ea
Sold in multiples of 10 for $81.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5252
Zoro #
G604256015
UPC #
07847781954
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in
Face Plate Width
1.4 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, UL 498 File E13399
Resistance Properties
Impact Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Material
PBT Polyester Blend (Body and Face)
Outlet Type - Plugs and Receptacles
Duplex
HP
1/2 hp
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Application Environment
Heavy-Duty Industrial Grade
Polarized
Yes
Number of Outlets
2
Housing Material
PBT Polyester
UL 94 Flammability Rating
V-2
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
Contact Material
Phosphor Bronze
Includes
Strap Material
Horsepower Rating
1/2 hp
GFCI
No
Maximum Operating Temperature
140 Degrees F
Grade
Federal Specification
NEMA Enclosure Rating
Not Rated
Connection Orientation
Straight
Cover Type
No Cover
Market
Commercial, Industrial
For Environment
Institutional
Pole
2
CSA C22.2 No. 42
File 152105
Operating Temperature
-40°C to 75°C
Flammability
Rated V-0 per UL 94
Terminal Accom.
#14-#10 AWG
Device Type
Duplex Receptacle Outlet
Line Contacts
0.030" Phosphor Bronze
Feature 4
Smooth Face
Face Material
PBT Polyester Blend
Dielectric Voltage
Withstands 3000V min
UL498
File E13399
Strap Material
Galvanized Steel with Riveted Ground Contacts
Ground Clips
Brass
Termination
Back and Side Wire
ANSI
C-73
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Terminal ID
Brass-Hot, Silver-Neutral, Green-Ground
Wire
3
Screw Terminal Torque
14-18 in-lbs
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
At Rated Voltage
1/2 HP
Body Material
PBT Polyester Blend
Terminal Screws
#8 Triple-Drive Brass
Clamp Nuts
Steel (Galvanized G60)

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
