  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

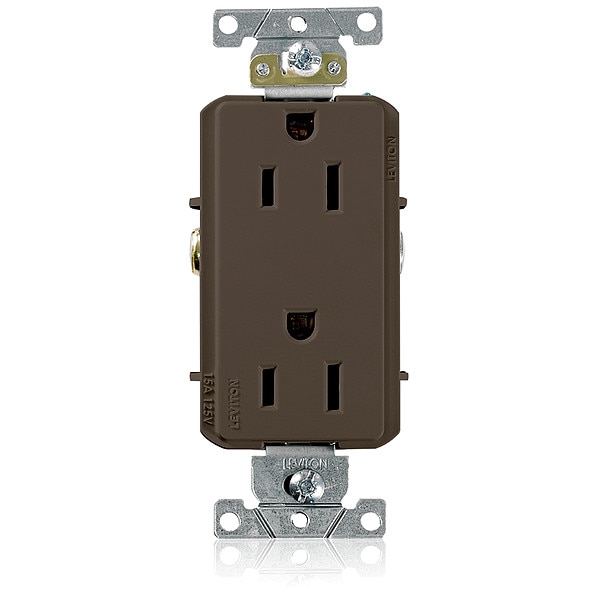

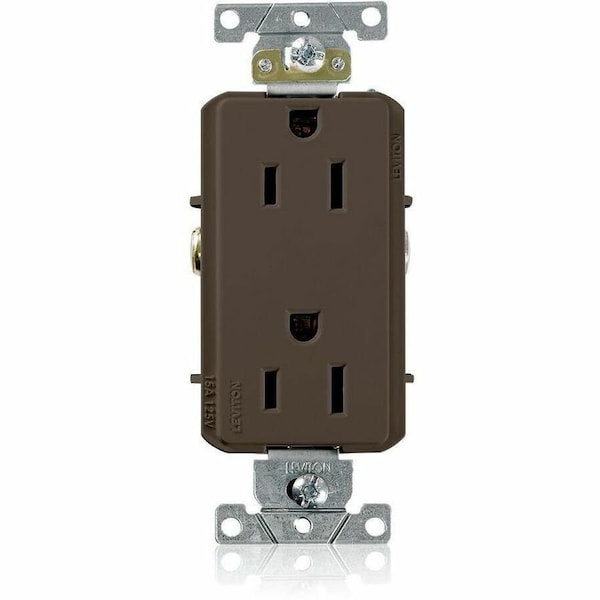

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 16242 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 16242

  • Zoro # G504256078

product price: $5.19
/ea
Sold in multiples of 10 for $51.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16242
Zoro #
G504256078
UPC #
07847778820
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI, CSA C22.2, RoHS Compliant, UL 498, cULus
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Wiring Method - Plugs and Receptacles
Side
Application Environment
Commercial
Outlet Type - Plugs and Receptacles
Decorator Duplex
Material
PBT Polyester Blend (Body and Face)
HP
1/2 hp
Includes Mounting Hardware
Yes
Contact Material
Phosphor Bronze
Minimum Operating Temperature
-40 Degrees F
Grade
Federal Specification
Market
Commercial, Industrial
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
GFCI
No
Polarized
Yes
Includes
Strap Material
Number of Outlets
2
Cover Type
No Cover
UL 94 Flammability Rating
V-2
Maximum Operating Temperature
140 Degrees F
Housing Material
PBT Polyester
Horsepower Rating
1/2 hp
Feature 4
Smooth Face
Grounding Screw
#8 Hex Head, Triple-Drive Brass
At Rated Voltage
1/2 HP
Termination
Side Wire
Strap Material
Steel (Galvanized G60)
Device Type
Duplex Receptacle Outlet
Dielectric Voltage
Withstands 3000V min
Face Material
PBT Polyester Blend
Terminal Accom.
14-10 AWG
Ground Clips
Brass-Plated
Line Contacts
0.030" Phosphor Bronze
Certification/Listing
cULus, NON-ANCE
Screw Terminal Torque
14-18 in-lbs
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2 No.42
ANSI
C-73
Temperature Rise
Max 30°C temperature rise at full rated current
Flammability
Rated V-2 per UL 94
Body Material
PBT Polyester Blend
Wire
3
Current Limiting
Full Rated Current
Operating Temperature
-40°C to 60°C
Terminal Screws
#8 Triple-Drive Brass

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
