  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

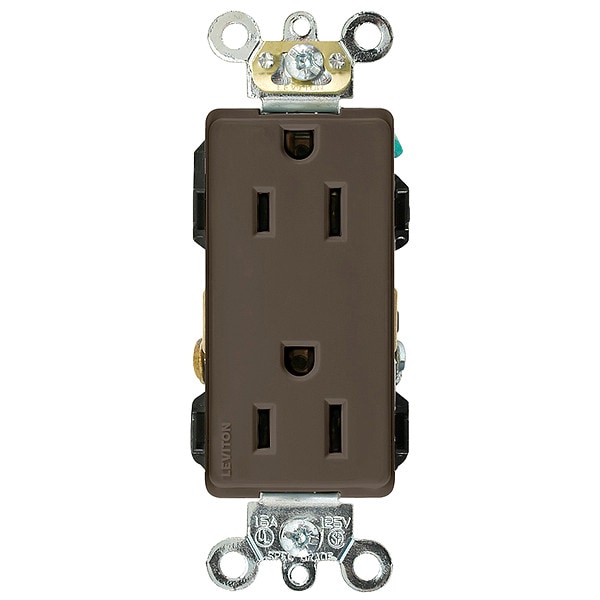

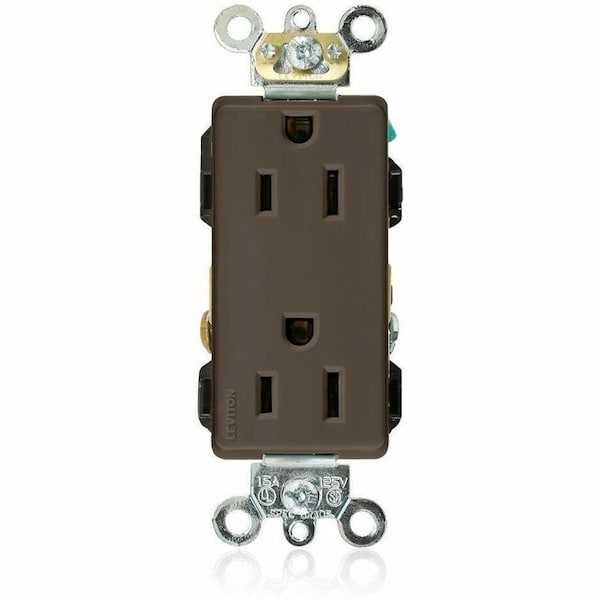

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 16262 - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 16262

  • Zoro # G504256023

product price: $9.89
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16262
Zoro #
G504256023
UPC #
07847781940
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Face Plate Height
2.6 in
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Application Environment
Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
HP
1/2 hp
Material
Thermoplastic Nylon (Body and Face)
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Connection Orientation
Straight
Includes
Strap Material
Cover Type
No Cover
UL 94 Flammability Rating
V-2
GFCI
No
Horsepower Rating
1/2 hp
Contact Material
Brass
Polarized
Yes
Grade
Federal Specification
Includes Mounting Hardware
Yes
Housing Material
Thermoplastic
Maximum Operating Temperature
140 Degrees F
Market
Commercial, Industrial
ANSI
C-73
Operating Temperature
-40°C to 60°C
Terminal Screws
Brass 10-32
Feature 4
Smooth Face
Temperature Rise
Max 30C at 250 cycles OL at 200 pct rated current
Current Limiting
Full Rated Current
At Rated Voltage
1/2 HP
Pole
2
Screw Terminal Torque
14-18 in-lbs
Dielectric Voltage
Withstands 2000V per UL498
UL498
File E13399
Ground Clips
Brass-Plated
Clamp Nuts
Zinc-Plated Steel
Strap Material
Zinc-Plated Steel
Face Material
Thermoplastic Nylon
Termination
Back or Side Wire
CSA C22.2 No. 42
File 152105
Flammability
Rated V-2 per UL 94
Device Type
Duplex Receptacle Outlet
Line Contacts
Brass Triple-Wipe .031 Thick
Wire
3
Terminal Accom.
14-10 AWG
Body Material
Thermoplastic Nylon
Grounding Screw
Brass 8-32
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
