  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

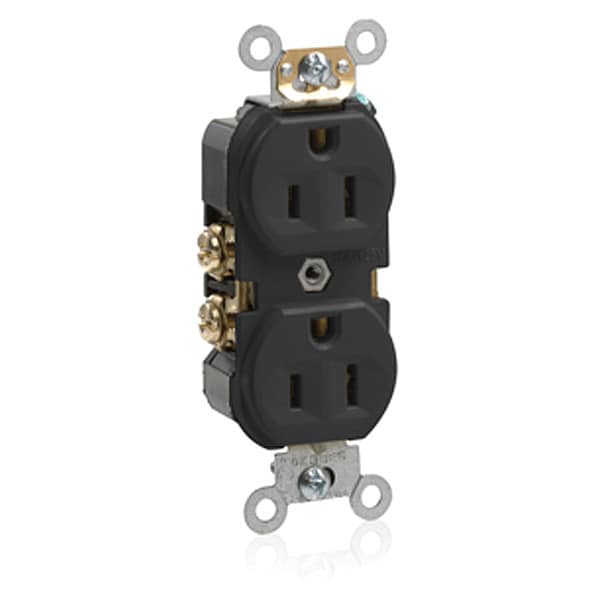

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded BR15-E - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # BR15-E

  • Zoro # G204256033

product price: $3.69
/ea
Sold in multiples of 10 for $36.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
BR15-E
Zoro #
G204256033
UPC #
07847781978
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Black
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Special Features
Indented Face
Outlet Type - Plugs and Receptacles
Duplex
Material
Polypropylene (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
HP
1/2 hp
Application Environment
Commercial
Maximum Operating Temperature
140 Degrees F
Connection Orientation
Straight
Number of Outlets
2
Housing Material
Polycarbonate
Market
Commercial
Cover Type
No Cover
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Contact Material
Brass
GFCI
No
Polarized
Yes
NEMA Enclosure Rating
Not Rated
At Rated Voltage
1/2 HP
UL498
File E13399
Operating Temperature
-40°C to 60°C
Face Material
Polypropylene
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Clamp Nuts
Brass
Line Contacts
Brass Triple-Wipe .031 Thick
Current Limiting
Full Rated Current
Terminal Screws
Brass 8-32
Wire
3
Terminal Accom.
14-10 AWG
Pole
2
Strap Material
Zinc-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Grounding Screw
Steel 8-32
Device Type
Duplex Receptacle Outlet
Body Material
Polypropylene
ANSI
C-73
Feature 4
Indented Face
Termination
Back or Side Wire
Screw Terminal Torque
14-18 in-lbs
Ground Clips
Brass
Dielectric Voltage
Withstands 2000V per UL498
CSA C22.2 No. 42
File 152105

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
