  6. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

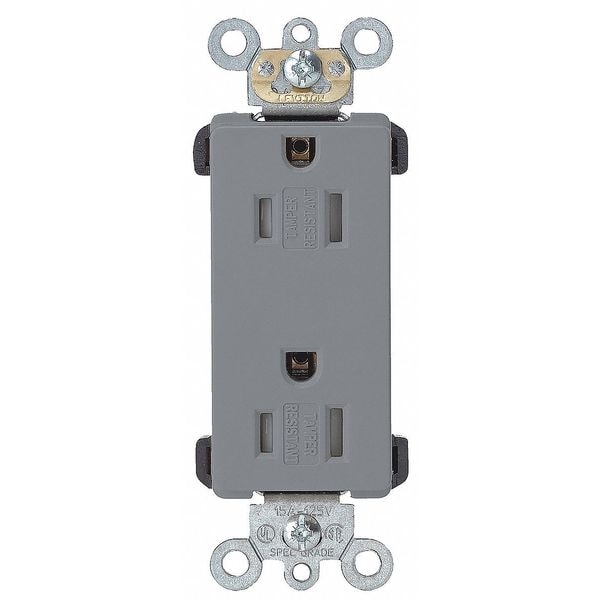

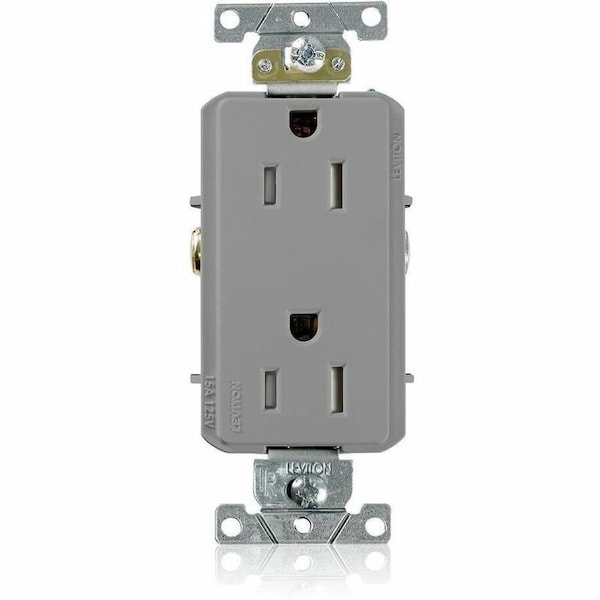

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded TDR15-GY - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # TDR15-GY

  • Zoro # G004256011

product price:  $10.49
/ea
Sold in multiples of 10 for $104.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
TDR15-GY
Zoro #
G004256011
UPC #
07847739212
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Height
2.8 in
Overall Depth
0.9 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
Outlet Type - Plugs and Receptacles
Decorator Duplex
Tamper Resistant
Yes
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Sub-Category
Duplex Receptacles
Material
PBT Polyester Blend (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Number of Outlets
2
Connection Orientation
Straight
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
PBT Polyester
Cover Type
No Cover
Maximum Operating Temperature
167 Degrees F
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
UL 94 Flammability Rating
V-0
Market
Industrial
Includes Mounting Hardware
Yes
Includes
Cover, Wallplate
Grade
Federal Specification
Polarized
Yes
Horsepower Rating
1/2 hp
Certification/Listing
cULus, NOM-ANCE
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Wire Type
Stranded or Solid
Pole
2
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Terminal Screws
#8 Triple-Drive Brass
Shutter Mechanism
Acetal
Strap Material
Steel (Galvanized G60)
ANSI
C-73
Ground Contacts
0.030" Brass
Flammability
Rated V-0 per UL 94
Ground Clips
Brass
Body Material
PBT Polyester Blend
Terminal Clamps
Brass
Screw Terminal Torque
14-18 in-lbs
Mounting Screws
Triple-Drive Plated Steel
Dielectric Voltage
Withstands 3000 V minimum
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Feature 4
Smooth Face
Wire
3
Terminal Accom.
#14 AWG - #10 AWG
Temperature Rise
Max 30 °C temperature rise at full rated current
Feature 2
Tamper-Resistant
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Face Material
PBT Polyester Blend
Operating Temperature
-40°C to 75°C
Device Type
Duplex Receptacle Outlet
Termination
Back or Side Wire

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
