  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue

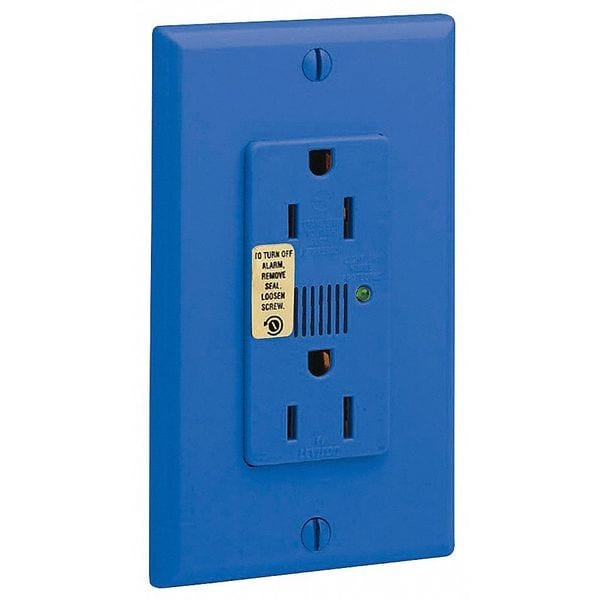

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue 7280-B - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue

  • Mfr # 7280-B

  • Zoro # G204393202

product price: $54.69
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7280-B
Zoro #
G204393202
UPC #
07847710222
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Outlet Type - Plugs and Receptacles
Decorator Duplex
Surge Suppression
Yes
Material
Nylon (Face), Polycarbonate (Body)
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Commercial
Grade
General Use
Connection Orientation
Straight
Market
Commercial, Industrial, Residential
Number of Outlets
2
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Surge Protection
Yes
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Housing Material
Polycarbonate
Contact Material
Brass
Cover Type
No Cover
GFCI
No
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Face Material
Nylon
Function
Surge Protective
Shutter Mechanism
Delrin® Acetal
Device Type
Duplex Receptacle Outlet
Terminal Accom.
14-10 AWG
Maximum Surge Current, Per Mode (Per Phase)
27kA (L-N:18kA, L-G:9kA)
Operating Temperature
-40°C to 60°C
Screw Terminal Torque
14-18 in-lbs
Noise Rejection
-30dB at 500kHz-30MHz
Yoke
Zinc-Plated Steel
Terminal Screws
Brass-Plated Steel
Joules Rating
720
Diagnostics
Indicator Light & Audible Alarm
Dielectric Voltage
Withstands 2000V per UL498
Grounding Screw
Brass-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Torque Range
14-16 inch pounds
Agency Certifications
UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
Ground Clips
Brass-Plated Steel
Short Circuit Current Rating
5kA
Current Limiting
Full Rated Current
Nominal Discharge Current Rating
3kA
Wire
3
ANSI
C-73
Pole
2
MCOV
150V rms
Line Contacts
Brass Triple-Wipe
Body Material
Polycarbonate
Clamp Nuts
Zinc-Plated Steel
Termination
Back or Side Wire
Flammability
Rated V-2 per UL 94

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
