  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

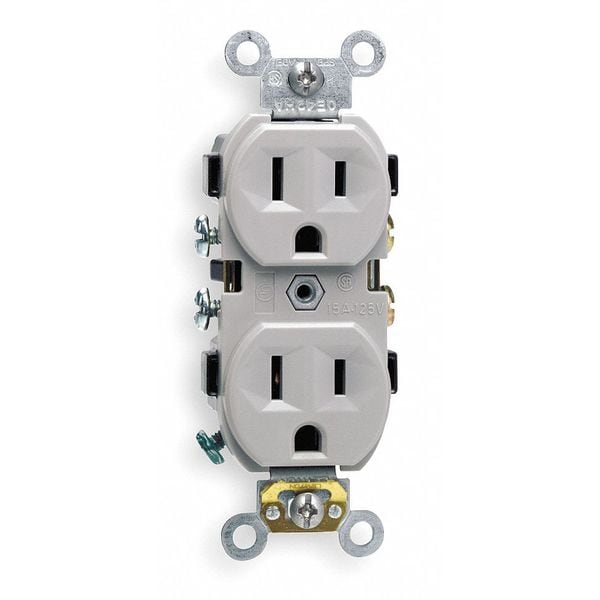

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray CR15-GY - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # CR15-GY

  • Zoro # G204836419

product price: $2.39
/ea
Sold in multiples of 10 for $23.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CR15-GY
Zoro #
G204836419
UPC #
07847781519
Country of Origin
United States

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-1 and WD-6, NOM 057, UL 498 File E13399
Flange Type
Non-Flanged
Special Features
Indented Face
Material
Nylon (Body and Face)
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Duplex Receptacles
HP
1/2 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Grade
Federal Specification
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Contact Material
Brass
Market
Commercial
UL 94 Flammability Rating
V-2
GFCI
No
Connection Orientation
Straight
Number of Outlets
2
Pole
2
Body Material
Nylon
At Rated Voltage
1/2 HP
CSA C22.2 No. 42
File 152105
Face Material
Nylon
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Device Type
Duplex Receptacle Outlet
Terminal Screws
Steel 8-32
Operating Temperature
-40°C to 60°C
Ground Clips
Brass-Plated
Wire
3
ANSI
C-73
Termination
Side Wire
Terminal Accom.
14-10 AWG
Grounding Screw
Steel 8-32
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Line Contacts
Brass Double Wipe .031 Thick
Screw Terminal Torque
14-18 in-lbs
Flammability
Rated V-2 per UL94
Dielectric Voltage
Withstands 2000V per UL498
Feature 4
Indented Face
UL498
File E13399
Current Limiting
Full Rated Current
Strap Material
Zinc-Plated Steel

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
