  11. Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

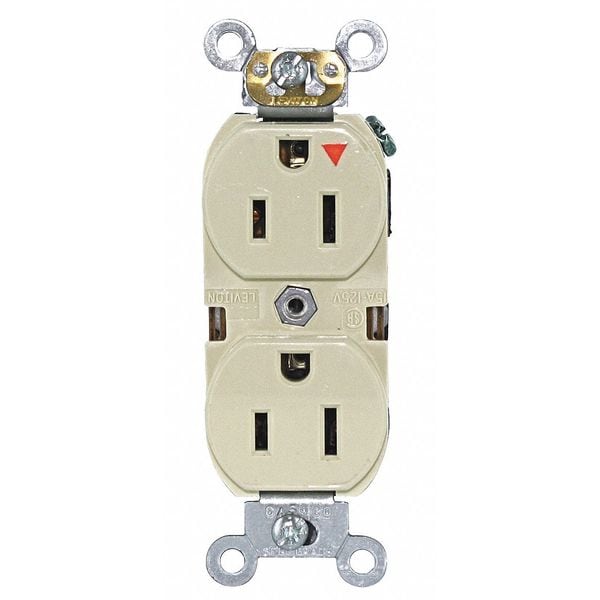

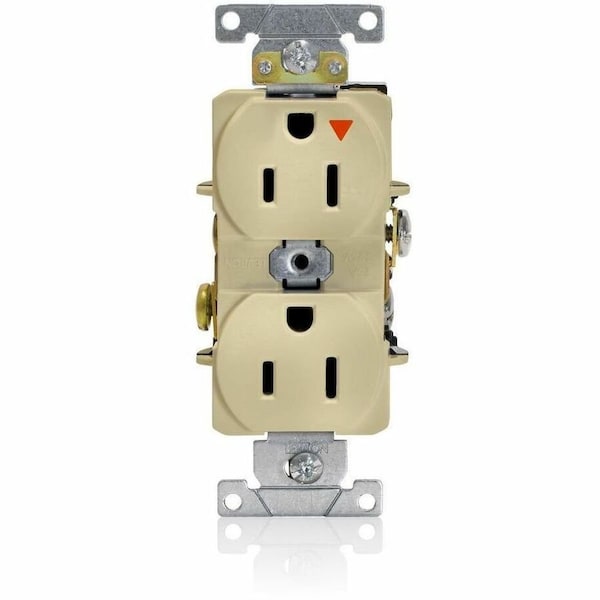

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 5262-IGI - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 5262-IGI

  • Zoro # G904393359

product price: $9.49
/ea
Sold in multiples of 10 for $94.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5262-IGI
Zoro #
G904393359
UPC #
07847705306
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.4 in
Face Plate Height
2.8 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596
Flange Type
Non-Flanged
Includes
Strap Material
Material
Nylon (Body and Face)
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Voltage
125 VAC
Sub-Category
Duplex Receptacles
HP
1/2 hp
Application Environment
Heavy-Duty Industrial Grade
Polarized
Yes
Housing Material
Nylon
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Horsepower Rating
1/2 hp
Number of Outlets
2
GFCI
No
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
Market
Commercial, Industrial
Connection Orientation
Straight
Grade
Federal Specification
Contact Material
Phosphor Bronze
UL Fed Spec WC-596
File E13399
Line Contacts
0.030" Phosphor Bronze
CSA C22.2 No. 42
File 152105
Strap Material
Steel (Galvanized G60)
At Rated Voltage
1/2 HP
Operating Temperature
-40°C to 75°C
Body Material
Nylon
Wire
3
Face Material
Nylon
Flammability
Rated V-0 per UL 94
Terminal Accom.
#14-#10 AWG
Termination
Back and Side Wire
Feature 4
Smooth Face
Device Type
Duplex Receptacle Outlet
Screw Terminal Torque
14-18 in-lbs
Terminal ID
Brass-Hot, Silver-Neutral, Green-Ground
Function
Isolated Ground
Dielectric Voltage
Withstands 3000 V min
UL498
File E13399
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Temperature Rise
Max 30C temperature rise at full rated current
Pole
2
ANSI
C-73
Terminal Screws
#8 Triple-Drive Brass

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
