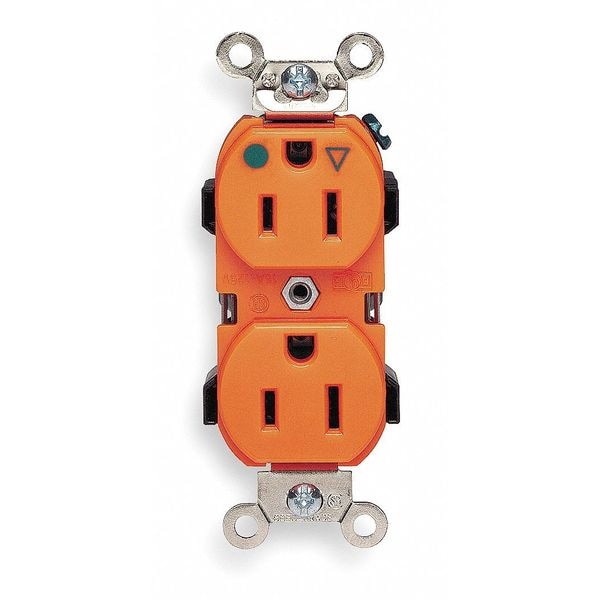

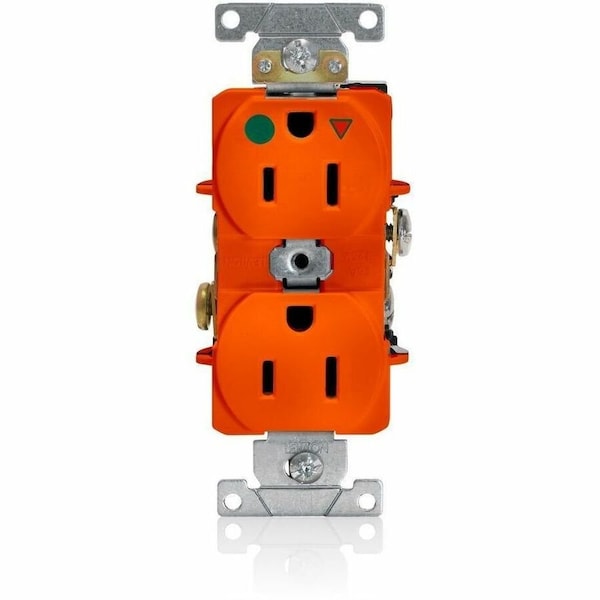

Leviton Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange 8200-IG - main

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Orange

  • Mfr # 8200-IG

  • Zoro # G904393212

product price:  $18.29
/ea
Sold in multiples of 10 for $182.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
8200-IG
Zoro #
G904393212
UPC #
07847705733
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Application Environment
Heavy-Duty Hospital Grade
Material
PBT Polyester Blend (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Includes
Grounding Clip
Voltage
125 VAC
HP
1/2 hp
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Includes Mounting Hardware
Yes
Connection Orientation
Straight
Cover Type
No Cover
Number of Outlets
2
Grade
Hospital Grade Fed. Spec.
NEMA Enclosure Rating
Not Rated
Housing Material
PBT Thermoplastic Polyester
Contact Material
Phosphor Bronze
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
GFCI
No
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Operating Temperature
-40°C to 60°C
Pole
2
Wire
3
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
Termination
Back or Side Wire
Mounting Screws
Triple-Drive Plated Steel
Ground Clips
Brass
Screw Terminal Torque
14-18 in-lbs
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.
14-10 AWG
ANSI
C-73
Clamp Nuts
0.030" Brass
Line Contacts
0.030" Phosopher Bronze
Device Type
Duplex Receptacle Outlet
Ground Contacts
0030" Brass
Dielectric Voltage
Withstands 3000V min
Grounding Screw
#8 Hex Head, Triple-Drive Bass
Strap Material
Steel (Galvanized G60)
At Rated Voltage
1/2 HP
Feature 4
Smooth Face
Function
Isolated Ground
Body Material
PBT Polyester Blend
Certification/Listing
cULus, NOM-ANCE
Shutter Mechanism
Acetal
Flammability
Rated V-2 per UL 94
Terminal Screws
#8 Triple-Drive Brass
Wire Type
Stranded or Solid
Temperature Rise
Max 30C temperature rise at full rated current
Terminal Clamp
Brass
Face Material
PBT Polyester Blend

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Orange, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
