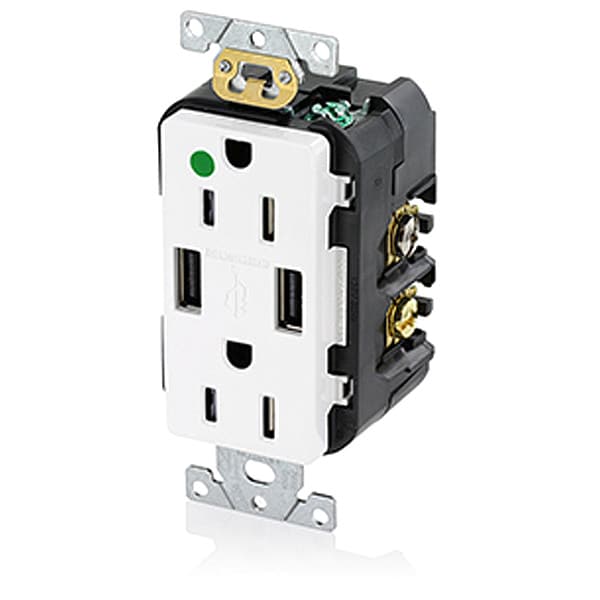

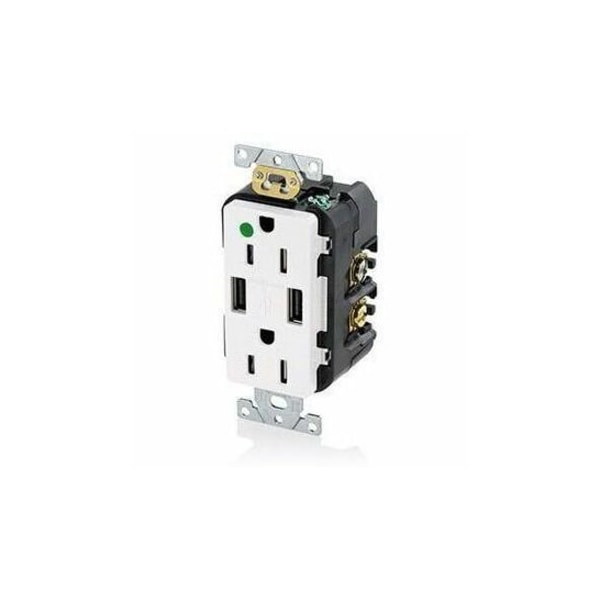

Straight Blade Receptacle, 5-15R, 15 A, 125V AC, 2 Pole, 3 Wire, Self-Grounded

  • Mfr # T5632-HGW

  • Zoro # G004256004

product price:
$
45.15
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
T5632-HGW
Zoro #
G004256004
UPC #
07847768547
Country of Origin
China
Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
IP Rating
Not Rated
Standards
ANSI C73, CSA Certified C22.2 No 42 and 223, NOM-ANCE, RoHS Compliant, UL 1310, UL 498, cCSAus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of USB Ports
2
USB Charging Capacity
3.6 A
NEMA Configuration
5-15
Horsepower Rating
1/2 hp
Market
Commercial
Contact Material
Brass
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
14 Degrees F
USB Connection Type
A
Number of Outlets
2
UL 94 Flammability Rating
V-0
Grade
Hospital Grade
Wire Connection Types
Screw Terminals
Housing Material
PBT Thermoplastic Polyester Resin
USB Standard
2.0
Electrical Connection Type
Straight Blade
GFCI
No
Power Indicating Light
No
Compatible with Series
USB 2.0
Surge Protection
No
Series
Any manufacturer
Mount Type
Flush

Description

USB Receptacle, Current Rating 15 A, Electrical Connection Type Straight Blade, Housing Color White, Number of Outlets 2, Number of USB Ports 2, Number of Wires 2, Power Indicating Light No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back/Side, Face Plate Height 2.62 in, Face Plate Width 1.3 in, GFCI No, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1/2 hp
