  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

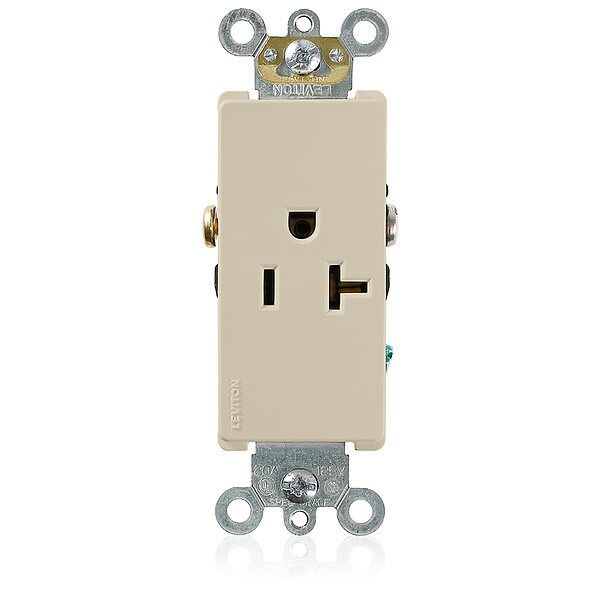

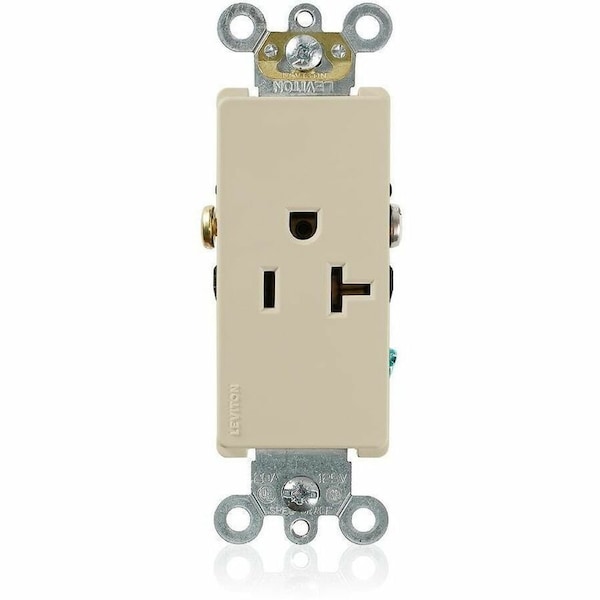

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded 16351-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # 16351-I

  • Zoro # G004256042

product price: $9.79
/ea
Sold in multiples of 2 for $19.58

Key Features

Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16351-I
Zoro #
G004256042
UPC #
07847747383
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Single
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Material
Thermoplastic Nylon (Body and Face)
Outlet Type - Plugs and Receptacles
Single
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Wiring Method - Plugs and Receptacles
Back and Side
Sub-Category
Single Receptacles
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
GFCI
No
Market
Commercial
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
1
Maximum Operating Temperature
140 Degrees F
Includes
Strap Material
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Polarized
Yes
Contact Material
Brass
Horsepower Rating
1 hp
Cover Type
No Cover
Housing Material
Thermoplastic
Grade
Federal Specification

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable, Standards ANSI C73, NEMA WD-6, UL 498 File E13399
