  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

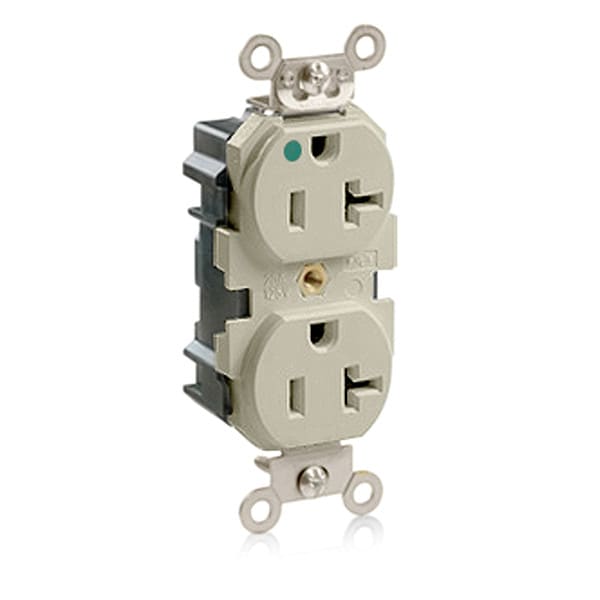

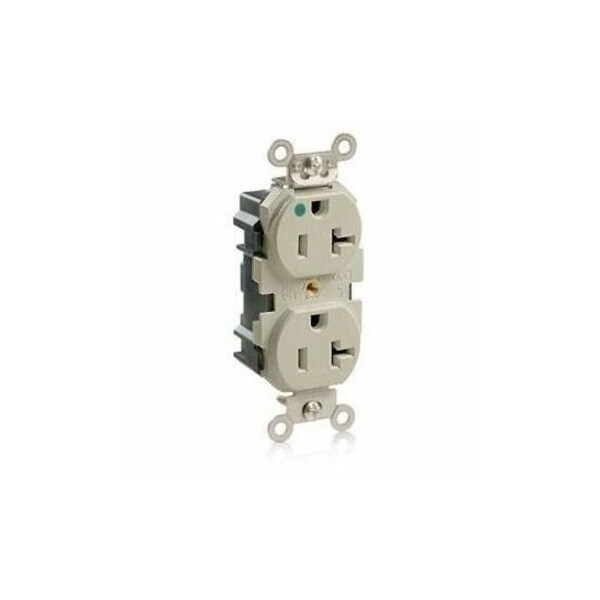

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded MT830-I - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # MT830-I

  • Zoro # G204256088

product price: $11.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MT830-I
Zoro #
G204256088
UPC #
07847741951
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
4.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Snap In Module
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, NEMA WD-1 & WD-6, NOM 057, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Modular
Cover Material
Nylon
HP
1 hp
Outlet Type - Plugs and Receptacles
Duplex
Sub-Category
Duplex Receptacles
Material
Nylon (Base)
Tamper Resistant
Yes
Application Environment
Heavy-Duty Hospital Grade
Horsepower Rating
1 hp
Grade
Hospital Grade
Connection Orientation
Straight
Cover Type
No Cover
Maximum Operating Temperature
140 Degrees F
GFCI
No
Number of Outlets
2
Polarized
Yes
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Minimum Operating Temperature
-40 Degrees F
Includes Mounting Hardware
Yes
Housing Material
Nylon
Maximum Working Voltage
125V as rated
Bushing
Solid Brass
Termination
Modular
Mounting Strap
Galvanized Steel with Riveted Ground Contacts
Ground Clips
Brass
Mounting Screws
Triple Combination Head, Steel
Shutter Mechanism
Delrin® Acetal
Line Contacts
0.040€ Thick Solid Brass
Feature
Tamper-Resistant|Smooth Face
Pole
2
cULus
Listed
Operating Temperature
-40°C to 60°C
Dielectric Voltage
Withstands 2000V per UL498
Device Type
Duplex Receptacle Outlet
Base Material
Nylon
NOM Certified
57
Current Interrupting
Certified for current interrupting at full rated current
Locking Pins
Solid Brass
ANSI
C-73
Wire
3
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards ANSI, RoHS Compliant, Voltage Rating 125V AC
