  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

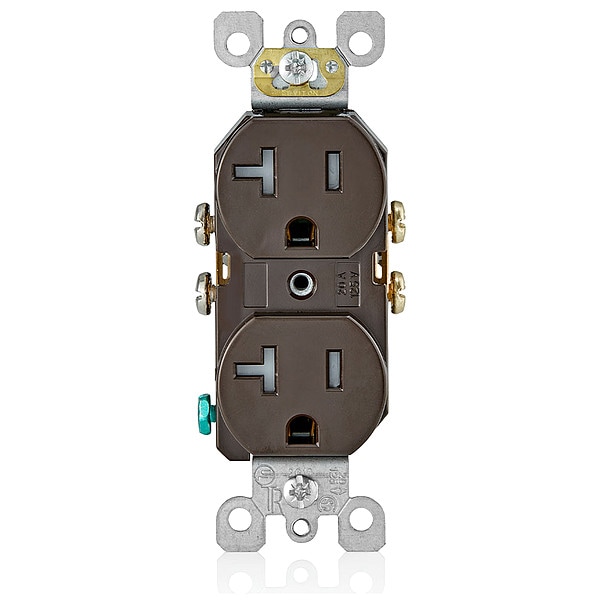

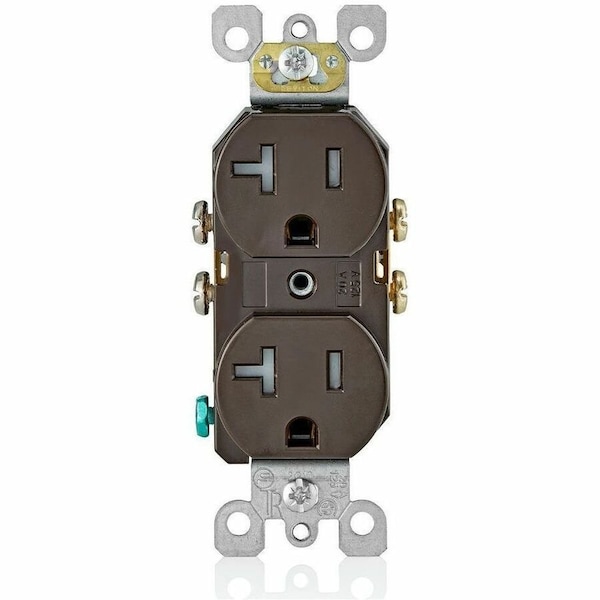

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded T5820 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # T5820

  • Zoro # G904256012

product price: $4.19
/ea
Sold in multiples of 3 for $12.57

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5820
Zoro #
G904256012
UPC #
07847745022
Country of Origin
China

Dimensions

Face Plate Height
2.8 in
Face Plate Width
1.4 in
Overall Depth
0.9 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
CSA Certified, NOM Certified, RoHS Compliant, UL Listed
Resistance Properties
Impact Resistant, Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Side
Sub-Category
Duplex Receptacles
Material
Thermoplastic Nylon (Body and Face)
Voltage
125 VAC
Outlet Type - Plugs and Receptacles
Duplex
Tamper Resistant
Yes
Housing Material
Thermoplastic Nylon
Connection Orientation
Straight
GFCI
No
Includes Mounting Hardware
Yes
Market
Residential
Polarized
Yes
Grade
Federal Specification
Cover Type
No Cover
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Product Type
Standard
Pole
2
UL 498
File E13399
Body Material
Thermoplastic Nylon
Wire
3
CSA C22.2 No. 42
File 152105; Class 6233-01
Face Material
Thermoplastic Nylon
Termination
Side
Feature
Tamper-Resistant
Device Type
Duplex Receptacle
Torque Range
14 -18 in.-lbs

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant
