  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

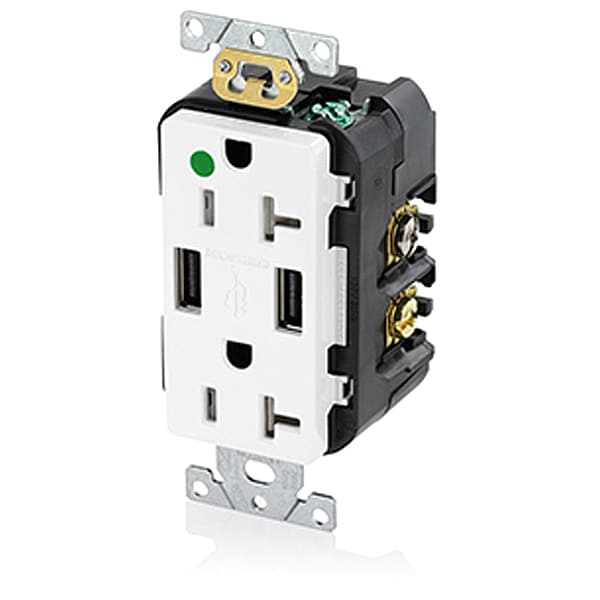

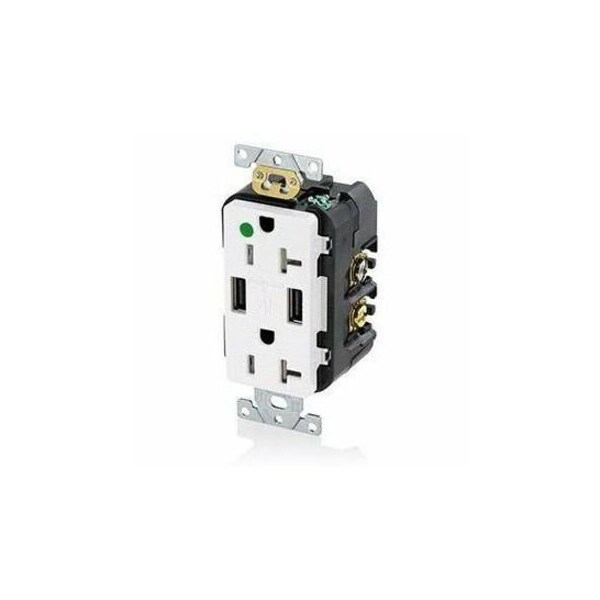

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded T5832-HGW - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Self-Grounded

  • Mfr # T5832-HGW

  • Zoro # G404256048

product price: $43.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
T5832-HGW
Zoro #
G404256048
UPC #
07847768552
Country of Origin
China

Dimensions

Face Plate Width
1.3 in
Maximum Wire Size
12 AWG
Face Plate Height
2.6 in
Mount Hole Center-to-Center Height
3.81 in
Overall Depth
1.7 in
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
White
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA Certified C22.2 No 42 and 223, NOM-ANCE, RoHS Compliant, UL 1310, UL 498, cCSAus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Number of USB Ports
2
USB Charging Capacity
3.6 A
Grade
Hospital Grade
USB Connection Type
A
Maximum Operating Temperature
104 Degrees F
Power Indicating Light
No
GFCI
No
Housing Material
PBT Thermoplastic Polyester Resin
USB Standard
2.0
Compatible with Series
USB 2.0
Horsepower Rating
1 hp
Minimum Operating Temperature
14 Degrees F
Number of Outlets
2
UL 94 Flammability Rating
V-0
Electrical Connection Type
Straight Blade
Contact Material
Brass
Market
Commercial
ANSI
C-73
Line Contacts
Brass
Flammability
Rated V-0 per UL 94
Terminal Screws
Steel
Ground Clips
Brass
Applicable Standards
UL 498 and 1310, CSA C22.2 Nos. 42 and 223
Pole
2
Screw Terminal Torque
14-18 in-lbs
Grounding Screw
Steel
Face Material
PBT
Terminal Clamp
Brass
Temperature Rise
Max 30C after 100 cycles OL
Strap Material
Steel
At Rated Voltage
1 HP
Termination
Back or Side Wire
Body Material
PBT Thermoplastic polyester resin
Wire
3
Operating Temperature
-10°C to 40°C
Terminal Accom.
14-12 AWG
Device Type
Duplex Receptacle Outlet
Dielectric Voltage
Withstands 2000V per CSA
Certification/Listing
cCSAus, NOM-ANCE
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Feature
Tamper-Resistant|with USB|Smooth Face

Description

Receptacle, Current Rating 20 A, Electrical Connection Type Straight Blade, Housing Color White, Number of Outlets 2, Number of USB Ports 2, Number of Wires 3, Power Indicating Light No, Receptacle Type Duplex, Resistance Properties Tamper Resistant, USB Connection Type A, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Method Back, Side, Face Plate Height 2.6 in, Face Plate Width 1.3 in, GFCI No, Grade Hospital Grade, Grounding Grounded, Horsepower Rating 1 hp
