  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue

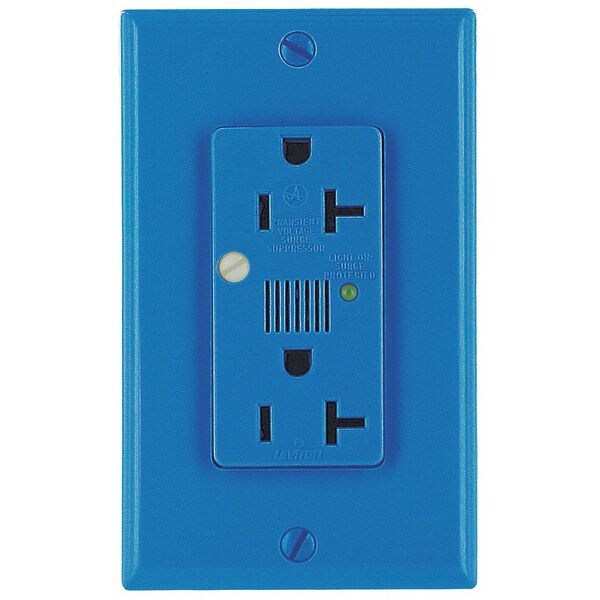

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue 7380-B - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Blue

  • Mfr # 7380-B

  • Zoro # G004393273

product price: $63.49
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
7380-B
Zoro #
G004393273
UPC #
07847710231
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Grounded
Housing Color
Blue
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 Certified Type 3, NEMA WD-6, NOM 057, UL 498 UL 1449 3rd Edition Listed
Flange Type
Non-Flanged
Surge Suppression
Yes
Material
Thermoplastic Nylon (Body and Face)
Application Environment
Commercial
HP
1 hp
Outlet Type - Plugs and Receptacles
Decorator Duplex
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Enclosure Rating
Not Rated
Polarized
Yes
GFCI
No
Market
Commercial, Industrial, Residential
Grade
General Use
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Housing Material
Thermoplastic Nylon
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Number of Outlets
2
Cover Type
No Cover
Surge Protection
Yes
Current Limiting
Full Rated Current
Terminal Screws
Brass-Plated Steel
Termination
Back or Side Wire
Noise Rejection
-30dB at 500kHz-30MHz
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Operating Temperature
-40°C to 60°C
Screw Terminal Torque
14-18 in-lbs
Short Circuit Current Rating
5kA
Clamp Nuts
Zinc-Plated Steel
Function
Surge Protective
Yoke
Zinc-Plated Steel
Joules Rating
720
Body Material
Thermoplastic Nylon
Pole
2
At Rated Voltage
1 HP
Ground Clips
Brass-Plated Steel
Agency Certifications
UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
Maximum Surge Current, Per Mode (Per Phase)
27kA (L-N:18kA, L-G:9kA)
ANSI
C-73
MCOV
150V rms
Terminal Accom.
14-10 AWG
Flammability
Rated V-2 per UL 94
Grounding Screw
Brass-Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Wire
3
Dielectric Voltage
Withstands 2000V per UL498
Shutter Mechanism
Delrin® Acetal
Nominal Discharge Current Rating
3kA
Torque Range
14-16 inch pounds
Diagnostics
Indicator Light & Audible Alarm
Device Type
Duplex Receptacle Outlet
Face Material
Thermoplastic Nylon
Line Contacts
Brass Triple-Wipe

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Thermoplastic Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
