Shop HUBBELL WIRING DEVICE-KELLEMS

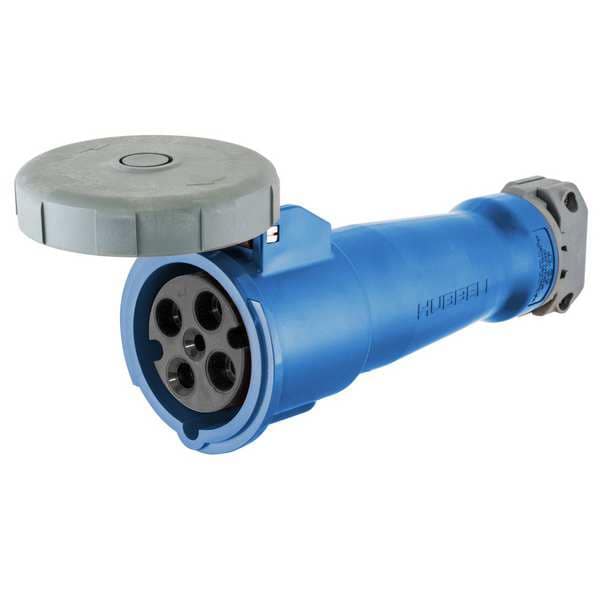

Watertight Pin & Sleeve Connector, 20 A, 250V AC, Three Phase, 3 Pole, IEC Grounding, Blue, NEMA 4X

  • Mfr # HBL420C9W
  • Zoro # G1682502
product price:
$
262.99
/ea
Free Shipping & Returns

Key Features

Current Rating
20 A
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
HBL420C9W
Zoro #
G1682502
UPC #
783585404332
Country of Origin
United States
Item
Watertight Pin & Sleeve Connector
Current Rating
20 A
Voltage Rating
250V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP68, IP69K
NEMA Enclosure Rating
4X
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding Style
IEC
Housing Color
Blue
Cap Type
Spring-Loaded Cap
Standards
CSA Certified LR280C, UL Classified to IEC 60309-1 IEC 60309-2, UL E146033
Resistance Properties
Corrosion Resistant, Impact Resistant, Moisture Resistant, Watertight
Switch Rated
No
Body Material
Zytel 801 Nylon
Body Material - Pin and Sleeve
Zytel 801 Nylon
Features
Color Coded Housings for Easy Identification, Insulated Non-Metallic Housing, Self-Closing Gasketed Cover
HP
2 hp
Application
High Ampacity Connections
Reverse Service
No
Housing Material
PBT
Horsepower Rating
5 hp
Compatible with Series
HBL Heavy Duty
Market
Industrial
Housing Material Grade
Zytel 801
Maximum Operating Temperature
75 Degrees C
Power Indicating Light
No
Shrouded
Yes
Minimum Operating Temperature
-40 Degrees F
Conductor Range
#14 AWG to #10 AWG
Material - Mounting Hardware
Cord Mounted
Industry Standard(s)
CSA Certified File LR280C UL Classified to IEC 60309-1 IEC 60309-2 UL Listed, File E146033
Insulation
Insulated Body
Environmental Conditions
Watertight
Number Of Conductors
4-Wire Grounding
Performance
Electrical - Current Interrupting - Certified for current interrupting at full rated current Electrical - Dielectric Voltage - 3000V AC Electrical - Max. Working Voltage - 600V RMS Environmental - Flammability - HB or better per UL 94 or CSA C22.2 No. 0.17 Environmental - Ingress Protection - IP67 Suitability Environmental - Moisture Resistance - Watertight per IEC 60309-1 Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum - 40°C w/o impact Mechanical - Impact Resistance - Per CSA C22.2 No.182.1 /UL1682 Mechanical - Product Identification - Identification and ratings are a permanent part of the device housing Mechanical - Terminal Identification - Terminals identified in accordance with North American and IEC conventions
Temperature Rating
Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
OEM Brand Name
Hubbell Wiring Device-Kellems
Style
Standard Service
Series
HBL Heavy Duty
Connection Type
Screw Terminals
Grounding
Grounded
UL 94 Flammability Rating
V-0

Description

The HUBBELL IEC Pin and Sleeve Connector is a suitable for use in industrial settings requiring 20A, 250V AC three-phase power distribution. Rated for 20A and 250V AC, this three-phase, four-wire grounding device features a constructed with a Zytel 801 nylon body with an insulated non-metallic housing. It is compatible with the HBL Heavy Duty series and includes pressure terminal screws compatible with #14 AWG to #10 AWG conductors.


Key Features of the HUBBELL IEC Pin and Sleeve Connector:

  • Current/Voltage Rating: Rated for 20A, 250V AC; suitable for three-phase power distribution

  • Body Material: Constructed with a Zytel 801 nylon body

  • IP68/IP69K ingress protection per IEC standards: IP68/IP69K ingress protection provides resistance to moisture and dust per IEC standards

  • Cord Mounted: Designed for use with cables ranging from 0.33 in to 0.83 in diameter

  • Color Coded Housing: Blue color coding allows easy voltage identification

  • Self-closing gasketed cover: Self-closing gasketed cover protects internal components when not connected

  • Screw Terminal Connections: Pressure terminal screws compatible with #14–#10 AWG conductors

  • Temperature Range: Operates continuously from -40°C (without impact) up to +75°C maximum temperature

  • Standards Compliance: CSA Certified LR280C, UL Classified to IEC 60309-1/2, UL E146033 listed device
