  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

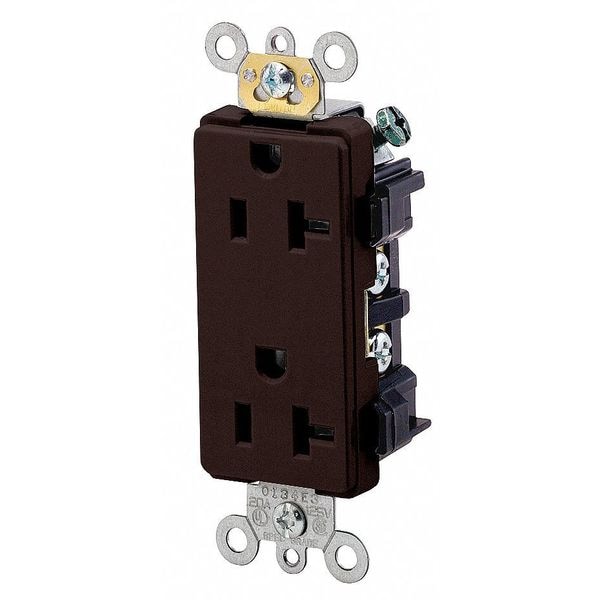

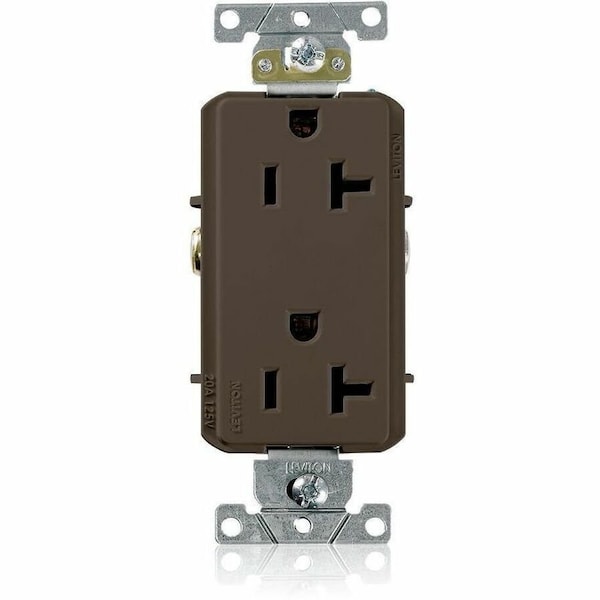

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 16352 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 16352

  • Zoro # G204393295

product price: $5.69
/ea
Sold in multiples of 10 for $56.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16352
Zoro #
G204393295
UPC #
07847781970
Country of Origin
Mexico

Dimensions

Face Plate Height
2.6 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Width
1.6 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Back and Side
Includes
Strap Material
Outlet Type - Plugs and Receptacles
Decorator Duplex
Material
Thermoplastic Nylon (Body and Face)
HP
1 hp
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Sub-Category
Duplex Receptacles
Housing Material
Thermoplastic
GFCI
No
Contact Material
Brass
Maximum Operating Temperature
140 Degrees F
Market
Commercial, Industrial
Polarized
Yes
Cover Type
No Cover
Includes Mounting Hardware
Yes
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
Connection Orientation
Straight
Minimum Operating Temperature
-40 Degrees F
Termination
Back or Side Wire
Grounding Screw
Brass 8-32
ANSI
C-73
Body Material
Thermoplastic Nylon
UL498
File E13399
CSA C22.2 No. 42
File LR-406
Terminal Screws
Brass 10-32
Current Limiting
Full Rated Current
Strap Material
Zinc-Plated Steel
Ground Clips
Brass-Plated
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Terminal Accom.
14-10 AWG
Screw Terminal Torque
14-18 in-lbs
Device Type
Duplex Receptacle Outlet
Clamp Nuts
Zinc-Plated Steel
Dielectric Voltage
Withstands 2000V per UL498
At Rated Voltage
1 HP
Feature 4
Smooth Face
Face Material
Thermoplastic Nylon
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Line Contacts
Brass Triple-Wipe .031 Thick

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
