  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

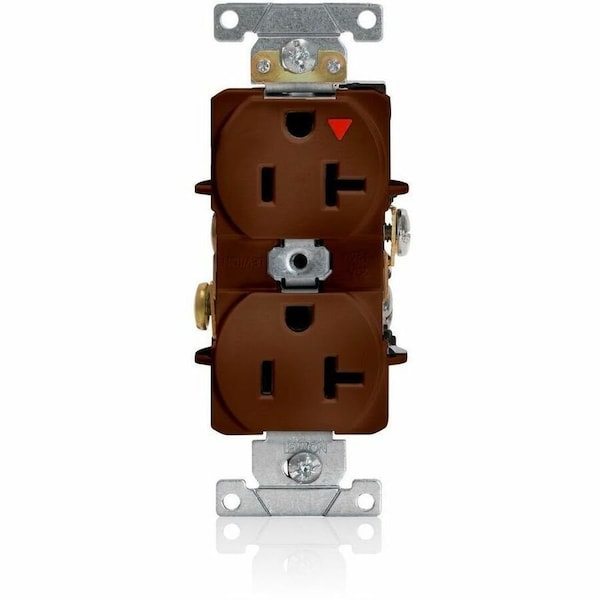

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 5362-IGB - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 5362-IGB

  • Zoro # G404393286

product price: $8.19
/ea
Sold in multiples of 10 for $81.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5362-IGB
Zoro #
G404393286
UPC #
07847705324
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Plate Width
1.3 in
Minimum Wire Size
14 AWG
Overall Depth
1.1 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Federal Specification WC-596
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Duplex
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Material
Nylon (Body and Face)
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Heavy-Duty Industrial Grade
Cover Type
No Cover
Polarized
Yes
Connection Orientation
Straight
Contact Material
Phosphor Bronze
NEMA Enclosure Rating
Not Rated
GFCI
No
Minimum Operating Temperature
-40 Degrees F
Number of Outlets
2
Market
Commercial, Industrial
Housing Material
Nylon
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Grade
Federal Specification
Includes Mounting Hardware
Yes
Maximum Operating Temperature
140 Degrees F
Screw Terminal Torque
14-18 in-lbs
Feature 4
Smooth Face
Operating Temperature
-40°C to 60°C
UL Fed Spec WC-596
File E13399
Clamp Nuts
Galvanized Steel
CSA C22.2 No. 42
File 152105
Strap Material
Galvanized Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Current Limiting
Full Rated Current
ANSI
C-73
Line Contacts
Phosphor Bronze
Body Material
Nylon
Terminal Accom.
14-10 AWG
Termination
Back or Side Wire
Pole
2
Isolated Ground System
Brass
UL498
File E13399
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal Screws
Plated Brass
Wire
3
Dielectric Voltage
Withstands 2000V per UL498
Face Material
Nylon
Flammability
Rated V-2 per UL 94
Grounding Screw
Brass 8-32
Device Type
Duplex Receptacle Outlet
At Rated Voltage
1 HP
Torque Range
14-16 inch pounds

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
