  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

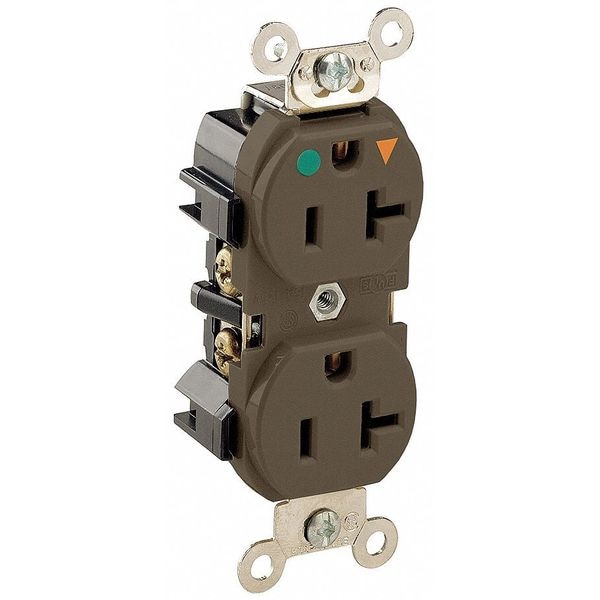

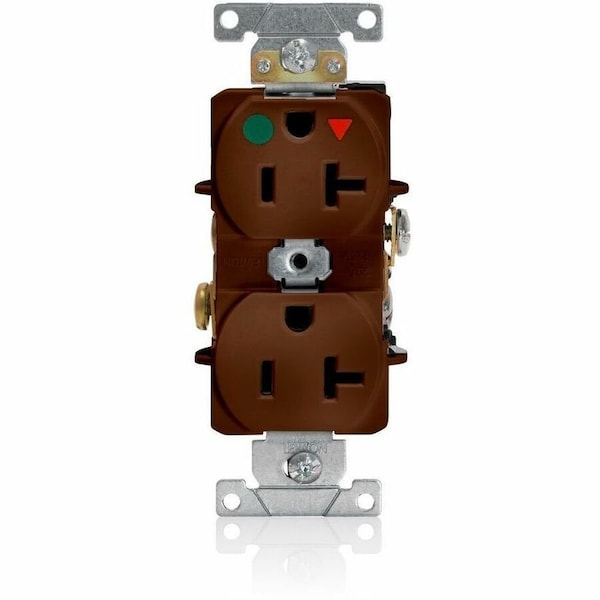

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown 8300-IGB - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # 8300-IGB

  • Zoro # G904393229

product price: $28.49
/ea
Sold in multiples of 10 for $284.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-IGB
Zoro #
G904393229
UPC #
07847705734
Country of Origin
Mexico

Dimensions

Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Resistance Properties
Abuse Tolerance
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Material
PBT Polyester Blend (Body and Face)
Voltage
125 VAC
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Duplex
Application Environment
Heavy-Duty Hospital Grade
Housing Material
PBT Thermoplastic Polyester
Polarized
Yes
GFCI
No
Contact Material
Phosphor Bronze
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
Connection Orientation
Straight
Number of Outlets
2
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-40 Degrees F
Grade
Hospital Grade Fed. Spec.
Cover Type
No Cover
UL498HG
File E13399
Wire
3
Screw Terminal Torque
14-18 in-lbs
Device Type
Duplex Receptacle Outlet
Certification/Listing
cULus, NOM-ANCE
Clamp Nuts
0.030" Brass
Face Material
PBT Polyester Blend
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Line Contacts
0.030" Phosopher Bronze
Grounding Screw
#8 Hex Head, Triple-Drive Bass
Ground Contacts
0030" Brass
Operating Temperature
-40°C to 60°C
Pole
2
UL Fed Spec WC-596
File E13399
Flammability
Rated V-2 per UL94
Mounting Screws
Triple-Drive Plated Steel
Strap Material
Steel (Galvanized G60)
Applicable Standards
UL 498, Fed Spec W-C-569, CSA 22.2 No. 42
Body Material
PBT Polyester Blend
Feature 4
Smooth Face
CSA C22.2 No. 42
File 152105
Wire Type
Stranded or Solid
At Rated Voltage
1 HP
Shutter Mechanism
Acetal
ANSI
C-73
Terminal Clamp
Brass
Temperature Rise
Max 30C temperature rise at full rated current
Function
Isolated Ground
Dielectric Voltage
Withstands 3000V min
Terminal Accom.
14-10 AWG
Termination
Back or Side Wire
Ground Clips
Brass
Terminal Screws
#8 Triple-Drive Brass
Current Limiting
Full Rated Current

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Thermoplastic Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
