  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

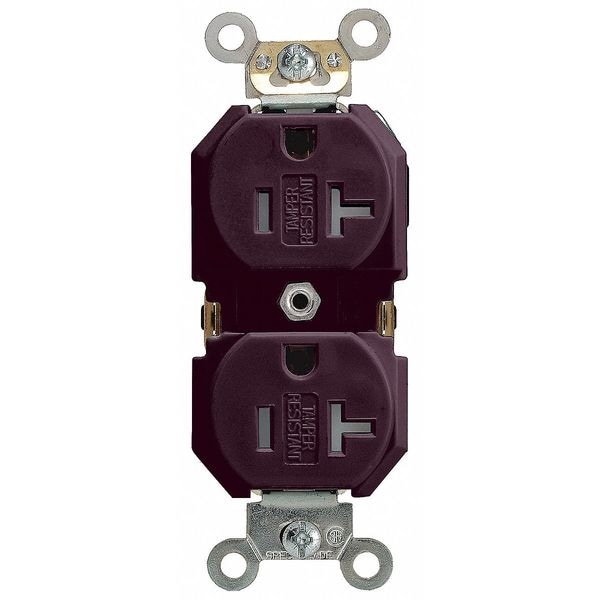

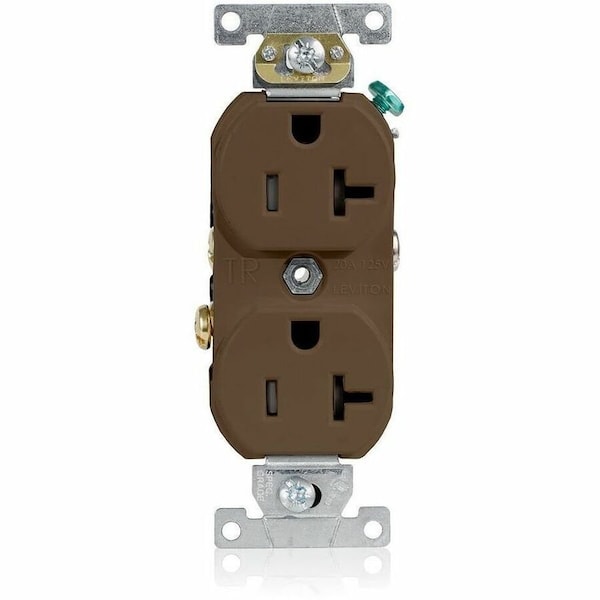

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown TBR20 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # TBR20

  • Zoro # G604393215

product price: $7.59
/ea
Sold in multiples of 2 for $15.18

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TBR20
Zoro #
G604393215
UPC #
07847739208
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Commercial
Special Features
Tamper-Resistant, Two Outlets Marked Controlled
Tamper Resistant
Yes
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Material
Thermoplastic (Body and Face)
Sub-Category
Duplex Receptacles
Outlet Type - Plugs and Receptacles
Duplex
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Cover Type
No Cover
Housing Material
Thermoplastic
Maximum Operating Temperature
140 Degrees F
Grade
Federal Specification
Connection Orientation
Straight
Market
Commercial
Horsepower Rating
1 hp
Polarized
Yes
GFCI
No
Number of Outlets
2
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Terminal Screws
Plated Steel
ANSI
C-73
Shutter Mechanism
Delrin® Acetal
Pole
2
Wire
3
Grounding Screw
Plated Steel
Feature
Two Outlets Marked Controlled
Feature 4
Smooth Face
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Ground Clips
Brass
Termination
Back or Side Wire
Face Material
Thermoplastic
Feature 2
Tamper-Resistant
UL 498
File E13399
At Rated Voltage
1 HP
Body Material
Thermoplastic
Terminal Accom.
14-10 AWG
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Device Type
Duplex Receptacle Outlet
Screw Terminal Torque
14-18 in-lbs
Strap Material
Zinc-Plated Steel
Operating Temperature
-40°C to 60°C
Flammability
Rated V-2 per UL94
Line Contacts
Brass .031 Thick
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
CSA C22.2 No. 42
File 152105

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards ANSI, CSA Certified, NOM Certified, UL Listed
