  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

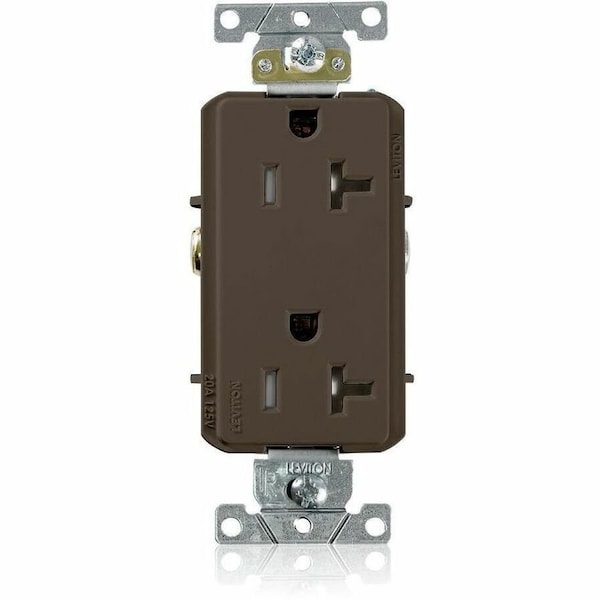

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown TDR20 - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Brown

  • Mfr # TDR20

  • Zoro # G404393224

product price: $9.69
/ea
Sold in multiples of 10 for $96.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
TDR20
Zoro #
G404393224
UPC #
07847739213
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Overall Depth
0.9 in
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Brown
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-1 & WD-6, NOM 057, UL 498, UL Federal Specification WC-596, cULus
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Material
PBT Polyester Blend (Body and Face)
Tamper Resistant
Yes
Outlet Type - Plugs and Receptacles
Decorator Duplex
Includes
Cover, Wallplate
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Heavy-Duty Industrial Grade
Housing Material
PBT Polyester
Connection Orientation
Straight
NEMA Enclosure Rating
Not Rated
Grade
Federal Specification
GFCI
No
UL 94 Flammability Rating
V-0
Contact Material
Brass
Maximum Operating Temperature
167 Degrees F
Market
Industrial
Includes Mounting Hardware
Yes
Cover Type
No Cover
Number of Outlets
2
Polarized
Yes
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees F
ANSI
C-73
Pole
2
Flammability
Rated V-0 per UL 94
Face Material
PBT Polyester Blend
Line Contacts
Phosphor Bronze Triple Wipe 0.031
Wire
3
Grounding Screw
#8 Hex Head, Triple-Drive Brass
Strap Material
Steel (Galvanized G60)
Temperature Rise
Max 30 °C temperature rise at full rated current
Nema Rating
WD-1, WD-6
Operating Temperature
-40°C to 75°C
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Dielectric Voltage
Withstands 3000 V minimum
Screw Terminal Torque
14-18 in-lbs
Feature 2
Tamper-Resistant
Terminal Clamps
Brass
Mounting Screws
Triple-Drive Plated Steel
Terminal Accom.
#14 AWG - #10 AWG
Certification/Listing
cULus, NOM-ANCE
Termination
Back or Side Wire
Terminal ID
Brass - Hot, Silver - Neutral, Green - Ground,
Device Type
Duplex Receptacle Outlet
Shutter Mechanism
Acetal
Terminal Screws
#8 Triple-Drive Brass
Ground Contacts
0.030" Brass
Body Material
PBT Polyester Blend
Wire Type
Stranded or Solid
Ground Clips
Brass
Feature 4
Smooth Face

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
