  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

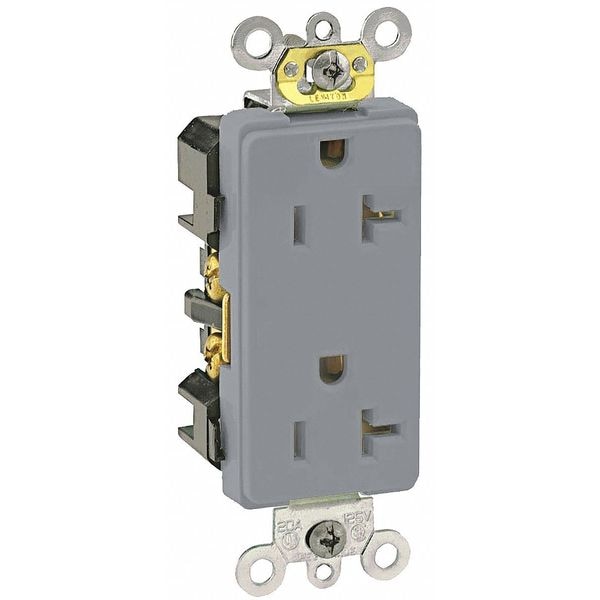

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray 16362-GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # 16362-GY

  • Zoro # G104393319

product price: $7.19
/ea
Sold in multiples of 2 for $14.38

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16362-GY
Zoro #
G104393319
UPC #
07847781947
Country of Origin
Mexico

Dimensions

Face Plate Height
2.6 in
Face Plate Width
1.3 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, UL 498 File E13399
Flange Type
Non-Flanged
Sub-Category
Duplex Receptacles
Application Environment
Industrial
Outlet Type - Plugs and Receptacles
Decorator Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Includes
Strap Material
Material
Thermoplastic Nylon (Body and Face)
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
HP
1 hp
Market
Industrial
Housing Material
Thermoplastic
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
UL 94 Flammability Rating
V-2
Grade
Federal Specification
Number of Outlets
2
Minimum Operating Temperature
-40 Degrees F
Polarized
Yes
Connection Orientation
Straight
GFCI
No
Cover Type
No Cover
Horsepower Rating
1 hp
Clamp Nuts
Zinc-Plated Steel
Line Contacts
Brass Triple-Wipe 0.040 Thick
Termination
Back & Side
UL498
File E13399
CSA C22.2 No. 42
File 152105
Strap Material
Zinc-Plated Steel
Face Material
Thermoplastic Nylon
Terminal Screws
Brass 10-32
Grounding Screw
Brass 8-32
Flammability
Rated V-2 per UL 94
Body Material
Thermoplastic Nylon
Operating Temperature
-40°C to 60°C
Wire
3
ANSI
C-73
Current Limiting
Full Rated Current
Temperature Rise
Max 30C at 250 cycles OL at 200 pct rated current
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Dielectric Voltage
Withstands 2000V per UL498
Terminal Accom.
14-10 AWG
At Rated Voltage
1 HP
Ground Clips
Brass-Plated
Pole
2

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
