  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

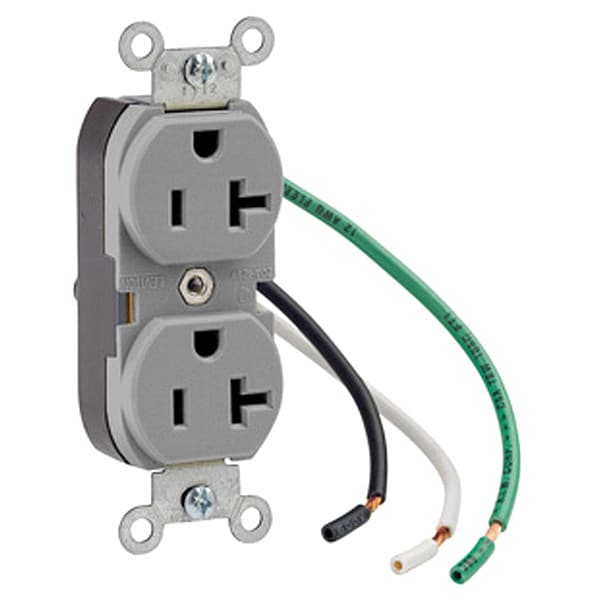

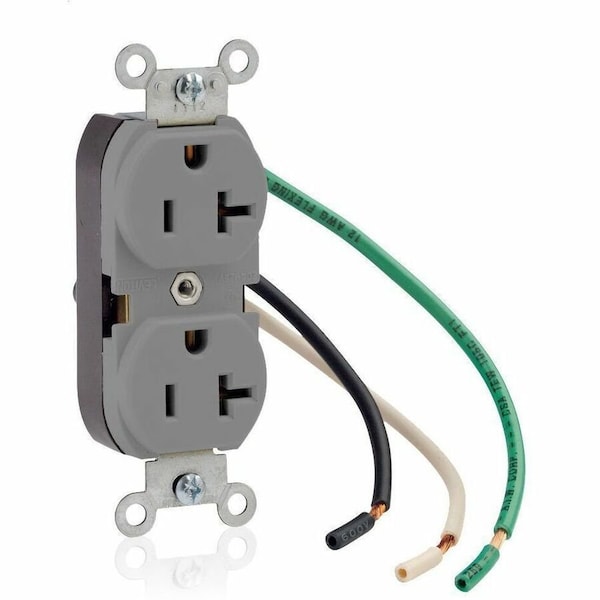

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray 5340-GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # 5340-GY

  • Zoro # G204393233

product price: $10.79
/ea
Sold in multiples of 10 for $107.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
5340-GY
Zoro #
G204393233
UPC #
07847723683
Country of Origin
Mexico

Dimensions

Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in
Face Plate Width
1.3 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Wire Leads
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File E152105, NEMA WD-6, NOM 057 Certified, UL 498 File E13399
Flange Type
Non-Flanged
Wiring Method - Plugs and Receptacles
Wire Lead
Material
Nylon (Body and Face), Thermoplastic (Base)
Outlet Type - Plugs and Receptacles
Duplex
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Includes
Isolated Ground
Application Environment
Commercial
HP
1 hp
Cover Type
No Cover
Horsepower Rating
1 hp
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees F
GFCI
No
Includes Mounting Hardware
Yes
Polarized
Yes
Number of Outlets
2
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
Grade
Federal Specification
Connection Orientation
Straight
Market
Commercial
UL 94 Flammability Rating
V-2
Grounding Leads
6", #12 AWG THHN
Face Material
Nylon
Termination
Pre-Wired Leads
Device Type
Duplex Receptacle Outlet
At Rated Voltage
1 HP
Flammability
Rated V-2 per UL 94
Pole
2
Base Material
Thermoplastic
Feature
Smooth Face
Line Contacts
Brass Triple Wipe .031 Thick
Terminal ID
Black-Hot, Green-Ground, White-Neutral
Bushing
Die Cast Aluminum
Mounting Strap
Galvanized Steel with Riveted Ground Contacts
Lead Identification
Leads identified in accordance with UL 498 (black, white & green)
Maximum Working Voltage
125V as rated
Terminal Screws
12GA THHN Wire Lead 6 Inch
Power Contacts
Brass, triple wipe
ANSI
C-73
Grounding Screw
12GA THHN Green Wire Lead 6 Inch
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Operating Temperature
-40°C to 60°C
Dielectric Voltage Withstand
2000V minimum per UL 498
Cover Material
Thermoplastic
Body Material
Nylon
CSA C22.2 No. 42
File 152105
Current Interrupting
Certified for current interrupting at full rated current
Wire
3
Terminal Leads
6", #12 AWG THHN
Mounting Screws
Triple Combination Head, Steel
UL498
File E13399
Screw Terminal Torque
14-18 in-lbs

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
