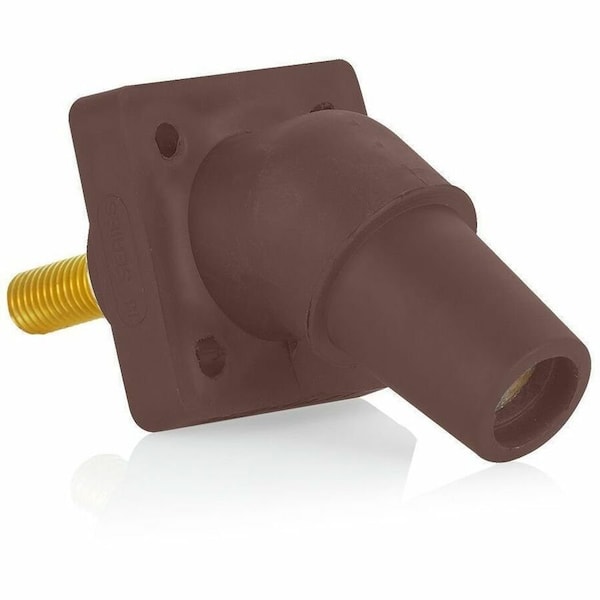

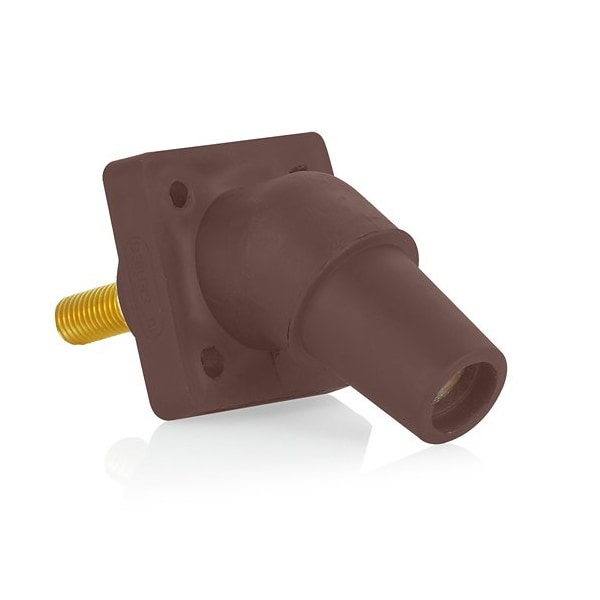

Plugs and Receptacles
- Mfr # 16R30-1UH
- Zoro # G322587149
product price:Â
$
69.89
/ea
Key Features
Flange Width
2.29 in
Overall Length
4.75 in
Housing Material
Santoprene TPV
Minimum Operating Temperature
-40 Degrees F
Voltage Rating
600V AC, 600V DC
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R30-1UH
- Zoro #
- G322587149
- UPC #
- 78477405994
- Country of Origin
- Mexico
- Housing Material
- Santoprene TPV
- Minimum Operating Temperature
- -40 Degrees F
- Voltage Rating
- 600V AC, 600V DC
- Contact Material
- Brass
- For Location
- Outdoor
- Gender
- Female
- NEMA Enclosure Rating
- 3R
- Housing Color
- Brown
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Flange Shape
- Square
- Mounting Style
- Through Hole Mounting
- Current Rating
- 400 A
- Connection Orientation
- Angled
- End Type
- Taper Nose
- Series
- 16
- Maximum Operating Temperature
- 185 Degrees F
- Item
- Single Pole Receptacle
- Terminal Connection Type
- Threaded Stud
- Standards
- UL/CSA 1691
Dimensions
- Flange Width
- 2.29 in
- Overall Length
- 4.75 in
- Maximum Wire Size
- 4/0 AWG
- Overall Width
- 2.29 in
- Flange Height
- 2.29 in
- Minimum Wire Size
- 2 AWG
- Threaded Stud Termination Length
- 1.125 in
- Wire Rope Length
- 4.75 in
- Length
- 4.75 in
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Brown, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.29 in, Flange Shape Square, Flange Width 2.29 in, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
