  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

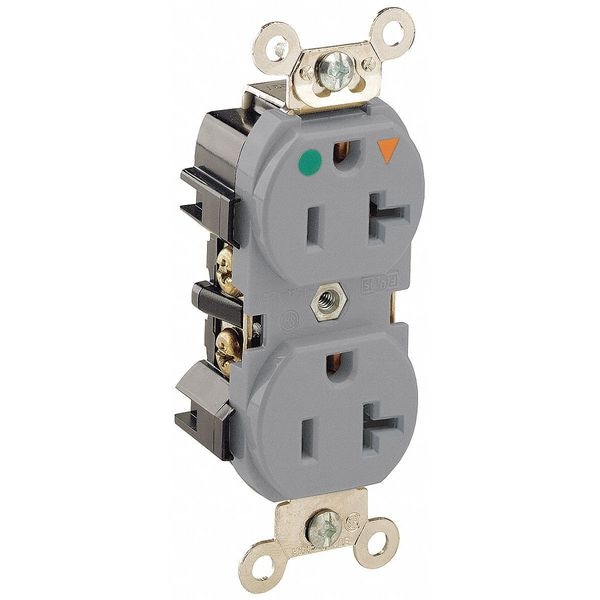

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray 8300-IGG - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # 8300-IGG

  • Zoro # G804393237

product price: $29.19
/ea
Sold in multiples of 10 for $291.90

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8300-IGG
Zoro #
G804393237
UPC #
07847703644
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.1 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Isolated Ground
Housing Color
Gray
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL Federal Specification WC-596, UL 498HG, cULus
Resistance Properties
Abuse Tolerance
Flange Type
Non-Flanged
Outlet Type - Plugs and Receptacles
Duplex
Material
Nylon (Body and Face)
HP
1 hp
Sub-Category
Duplex Receptacles
Application Environment
Heavy-Duty Hospital Grade
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Includes Mounting Hardware
Yes
Minimum Operating Temperature
-40 Degrees F
UL 94 Flammability Rating
V-2
Contact Material
Brass
Cover Type
No Cover
GFCI
No
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
Grade
Hospital Grade Fed. Spec.
Polarized
Yes
Connection Orientation
Straight
Horsepower Rating
1 hp
At Rated Voltage
1 HP
Current Limiting
Full Rated Current
Dielectric Voltage
Withstands 2000V per UL498
Pole
2-Pole
Wire
3-Wire
Strap Material
Nickel-Plated Steel
Function
Isolated Ground
Clamp Nuts
Zinc-Plated Steel
Flammability
Rated V-2 per UL94
UL Fed Spec WC-596
File E13399
Terminal Screws
Brass 10-32
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Feature 4
Smooth Face
Termination
Back or Side Wire
UL498HG
File E13399
Operating Temperature
-40C to 60C
Terminal Accom.
14-10 AWG
Device Type
Duplex Receptacle Outlet
Screw Terminal Torque
14-18 in-lbs
Grounding Screw
Brass 8-32
Body Material
Nylon
Line Contacts
Brass Triple-Wipe
CSA C22.2 No. 42
File 152105
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Face Material
Nylon
ANSI
C-73

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable
