  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

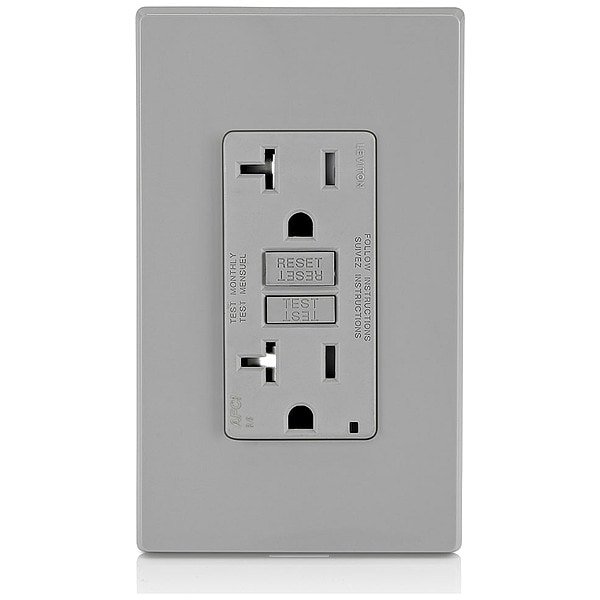

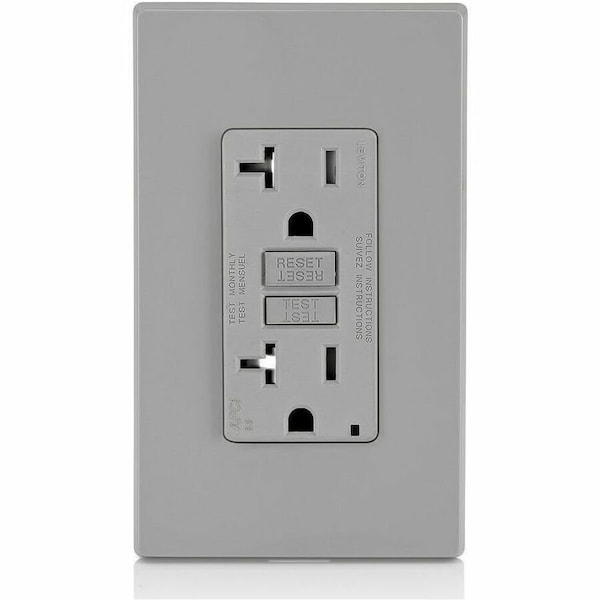

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray AFTR2-GY - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Gray

  • Mfr # AFTR2-GY

  • Zoro # G204393318

product price: $32.99
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
AFTR2-GY
Zoro #
G204393318
UPC #
07847757500
Country of Origin
China

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Gray
Mount Type
Flush
Standards
ANSI C73, CSA C22.2 No. 42, NOM 057, UL 498, UL Federal Specification WC-596, UL1699.A
Resistance Properties
Tamper Resistant
Flange Type
Non-Flanged
Weather Resistant - Plugs and Receptacles
No
Wiring Method - Plugs and Receptacles
Back and Side
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Outlet Type - Plugs and Receptacles
Blank Face
Power Indicator
Yes
Includes
Screws, Self Grounding Clip
Application Environment
General Purpose
Special Features
Device Design Reduces Nuisance Tripping, Impact-Resistant, Over-Voltage Resistant, Silver Alloy Contact, Two-Year Product Warranty
Surge Suppression
Yes
Tamper Resistant
Yes
HP
1 hp
Self-Testing
No
Housing Material
Polycarbonate
Grade
General Use
Maximum Operating Temperature
150.8 Degrees F
Contact Material
Brass
Surge Protection
No
Compatible with Series
AFTR2
GFCI
No
Polarized
Yes
Horsepower Rating
1 hp
UL 94 Flammability Rating
V-2
Minimum Operating Temperature
-31 Degrees F
Number of Outlets
2
Wall Plate Material
Nylon
Visual Indicator Lights
Power Connected
Hub Type
Feed Through
Reset Type
Automatic
AFCI
Yes
Self Testing
No
Reverse Service
Yes
Connection Orientation
Straight
Cover Type
No Cover
Wire
3
Pole
2
Body Material
Polycarbonate
Strap Material
Galvanized Steel
Clamps
Brass
Face Material
Thermoplastic
At Rated Voltage
1 HP
Yoke
Zinc-Plated Steel
Series
AFTR2
Feature
Tamper-Resistant
Dielectric Voltage
Withstands 1250VAC per UL 1699A
UL Fed Spec WC-596
Yes
Torque Range
14 - 18 in.-lbs
UL1699.A
File E342815
CSA C22.2 No. 42
Yes
UL 498
Yes
Wallplate
Included
Temperature Rise
Max 30C after 250 cycles OL at 200 percent rated current
Terminal Accom.
14-10 AWG
Line Contacts
Brass Triple-Wipe
ANSI
C-73
Grounding Screw
Plated Steel
Flammability
Rated V-2 per UL 94
Terminal Screws
Plated Steel
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
CSA Technical Information Letter No. M-02A
Yes
Termination
Back & Side
Operating Temperature
-35C to +66C
Standards and Certifications
UL/CSA, NEMA WD6, NEMA WD1

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
