  11. Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

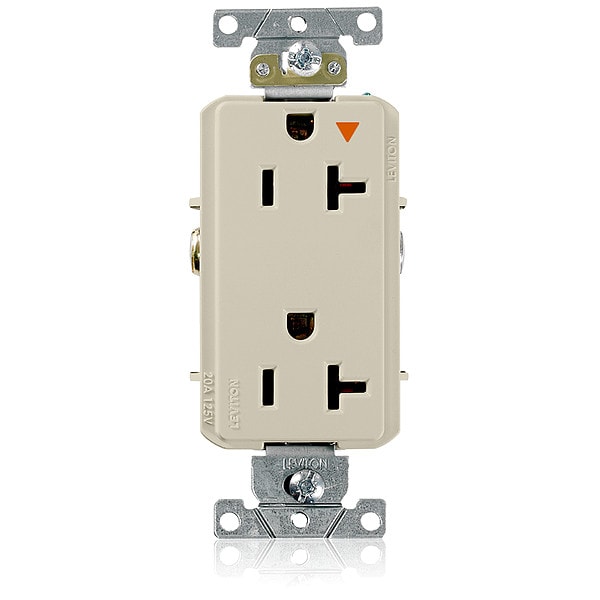

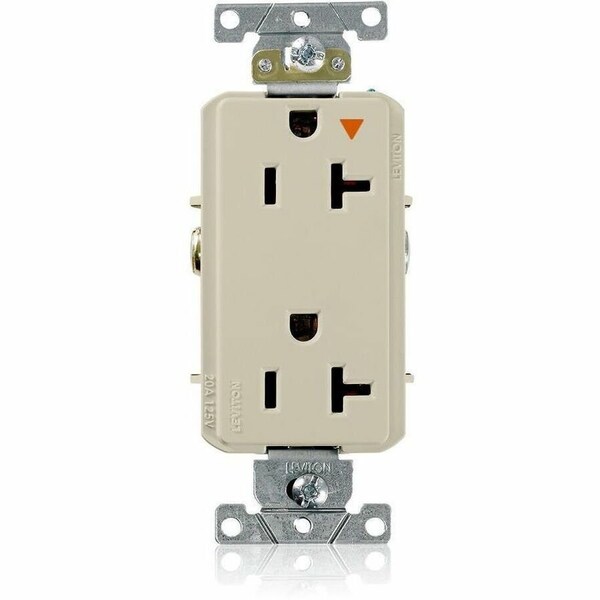

Leviton Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory 16362-IIG - main

Straight Blade Receptacle, 5-20R, 20 A, 125V AC, 2 Pole, 3 Wire, Flush Mount, Single, Ivory

  • Mfr # 16362-IIG

  • Zoro # G204393332

product price: $14.19
/ea

Key Features

Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
16362-IIG
Zoro #
G204393332
UPC #
07847790906
Country of Origin
Mexico

Dimensions

Face Plate Width
1.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.8 in

Details

Item
Straight Blade Receptacle
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Current Rating
20 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Method
Back, Side
Grounding
Self-Grounded
Housing Color
Ivory
Mount Type
Flush
IP Rating
Not Rated
Standards
ANSI C73, RoHS Compliant, UL 498 Federal Specification W-C-596 CSA C22.2 No. 42, cULus NOM-ANCE
Flange Type
Non-Flanged
Application Environment
Heavy-Duty Industrial Grade
Wiring Method - Plugs and Receptacles
Back and Side
Outlet Type - Plugs and Receptacles
Decorator Duplex
Sub-Category
Duplex Receptacles
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Includes
Strap Material
Material
PBT Polyester Blend (Body and Face)
HP
1 hp
Number of Outlets
2
Connection Orientation
Straight
UL 94 Flammability Rating
V-2
NEMA Enclosure Rating
Not Rated
Horsepower Rating
1 hp
Includes Mounting Hardware
Yes
Grade
Federal Specification
GFCI
No
Polarized
Yes
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Housing Material
PBT Polyester
Cover Type
No Cover
Contact Material
Phosphor Bronze
Wire Type
Stranded or Solid
Applicable Standards
UL 498, Fed Spec W-C-596, CSA C22.2. No. 42
Body Material
PBT Polyester Blend
Strap Material
Steel
Pole
2
Grounding Screw
#8 hex head, triple drive Brass
Certification/Listing
cULus, NOM-ANCE
Ground Clips
Brass
ANSI
C-73
Device Type
Duplex Receptacle Outlet
Termination
Back or Side Wire
Terminal Accom.
#14 AWG - #10 AWG
Dielectric Voltage
Withstands 3000 V minimum
Shutter Mechanism
Acetal
Terminal Screws
#8 Triple-Drive Brass
Wire
3
Flammability
Rated V-0 per UL 94
Temperature Rise
Max 30 °C after 250 cycles OL at 200 percent rated current
Line Contacts
0.030" Phosphor Bronze
Feature 4
Smooth Face
Function
Isolated Ground
Mounting Screws
Triple-Drive Plated Steel
Face Material
PBT Polyester Blend
Terminal ID
Brass - Hot, Green - Ground, Silver - Neutral
Ground Contacts
0.030" Brass
Screw Terminal Torque
14-18 in-lbs
Operating Temperature
-40°C to 75°C
Terminal Clamps
Brass

Description

Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Isolated Ground, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material PBT Polyester, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
